| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Fault Protection | |
| Lead Style | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Operating Temperature Range | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Type | |
| Voltage |
The SN65HVD11SJD from Texas Instruments is a robust 3.3-V RS-485 transceiver designed for high-temperature applications, operating from -55°C to 210°C. This device supports half-duplex communication with a maximum signaling rate of 10 Mbps, making it suitable for industrial and harsh environment communication systems.
Key electrical characteristics include a fault protection range of -9V to 14V and a common-mode range of -7V to 12V. It supports up to 256 nodes on the bus and operates with a supply voltage range of 3V to 3.6V. The transceiver offers integrated bus-pin ESD protection exceeding 16-kV HBM and short-circuit protection.

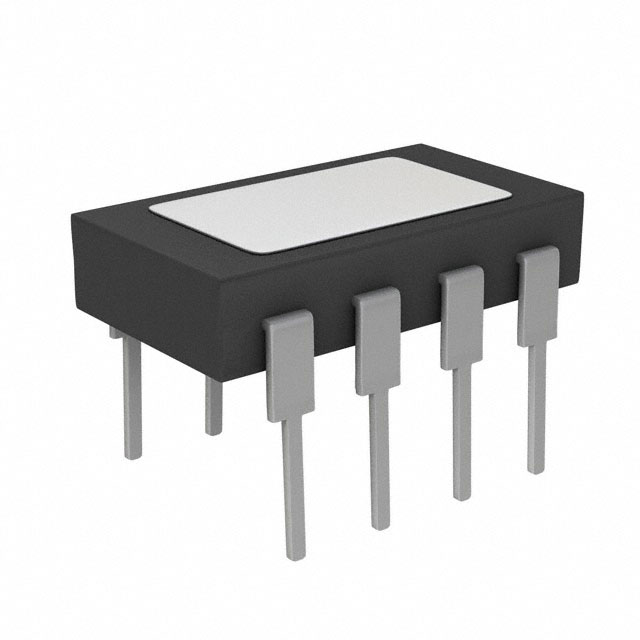

Packaged in an 8-pin CDIP (Ceramic Dual In-line Package), the SN65HVD11SJD is designed for through-hole mounting. Its design includes fail-safe receivers for open-circuit, idle-bus, and shorted-bus conditions, along with glitch-free power-up and power-down protection for hot-plugging applications. This component is built for extreme temperature applications, ensuring reliability in demanding conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $148.42 | $148.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 210°C.
The SN65HVD11SJD is available in an 8-CDIP package.
The maximum signaling rate is 10 Mbps.
It supports RS422 and RS485 protocols.
The operating voltage is between 3V and 3.6V.
