The SN65DSI84ZXHR from Texas Instruments is a specialized bridge IC designed to convert MIPI DSI signals to LVDS output. It implements MIPI D-PHY version 1.00.00 and DSI version 1.02.00, supporting single-channel DSI receivers configurable for one to four D-PHY data lanes operating up to 1 Gbps per lane.
This bridge is capable of handling 18 bpp and 24-bpp DSI video packets with RGB666 and RGB888 formats. It is suitable for resolutions such as WUXGA 1920 x 1200 at 60 fps and 1366 x 768 at 60 fps. The FlatLink output can be configured for single-link or dual-link LVDS, with an LVDS output clock range of 25 MHz to 154 MHz.
Key features include a 1.8-V main VCC power supply and low-power capabilities such as shutdown mode and MIPI ultra-low power state (ULPS) support. The device also offers LVDS channel swap and PIN order reverse features for easier PCB routing. It is ESD rated at ±2 kV (HBM).

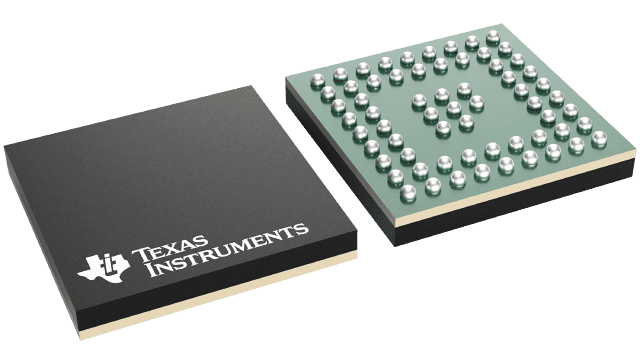

The SN65DSI84ZXHR is packaged in a 64-pin 5-mm x 5-mm nFBGA (ZXH) and operates within a temperature range of -40°C to 85°C. Its primary applications include PC notebooks and tablets, making it suitable for various display interface designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.08 | $2.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN65DSI84ZXHR supports MIPI DSI version 1.02.00.
The maximum data rate per lane is 1 Gbps.
It supports 60-fps WUXGA 1920 x 1200 resolution at 18-bpp and 24-bpp color, and 60 fps 1366 x 768 at 18 bpp and 24 bpp.
The main VCC power supply is 1.8V.
The operating temperature range is -40°C to 85°C.
The SN65DSI84ZXHR is packaged in a 64-pin 5-mm x 5-mm nFBGA (ZXH).
