SN65DPHY440SSRHRR The Texas Instruments SN65DPHY440SSRHRR is a MIPI DPHY retimer designed for video processing applications. It supports up to 4 lanes at 1.5Gbps and operates within an industrial temperature range.
Mfr Part #:

SN65DPHY440SSRHRR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments SN65DPHY440SSRHRR is a MIPI DPHY retimer designed for video processing applications. It supports up to 4 lanes at 1.5Gbps and operates within an industrial temperature range.
✓ Total Stock: 23,432 pcs
$ Price Range: $1.92

SN65DPHY440SSRHRR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,345 pcs
On Request
2345 pcs On Request 1 On Request On Request 1640+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,079 pcs
On Request
1079 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SN65DPHY440SSRHRR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Interface
Function
Mounting Type
Number of Channels
Operating Temperature Range
Supplier Device Package
Voltage
View Similar Products (0)

SN65DPHY440SSRHRR Description

Short technical summary and product information.

The SN65DPHY440SSRHRR from Texas Instruments is a MIPI DPHY retimer compliant with the MIPI DPHY 1.1 standard. This device is suitable for MIPI CSI-2 or MIPI DSI applications, enabling data rates up to 1.5Gbps per lane.



It features dynamic data and clock skew compensation, configurable edge rate control, and adjustable RX EQ to mitigate signal loss from PCB traces, connectors, and cables. The retimer regenerates DPHY signaling, ensuring optimal electrical performance from source to sink. It supports up to 4 lanes and clock signals, with CSI-2/DSI clock rates ranging from 100MHz to 750MHz.

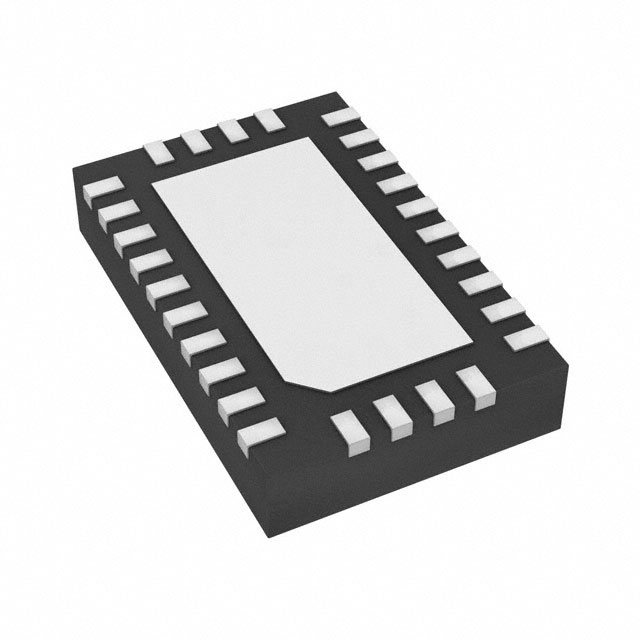

Designed for reliability, the SN65DPHY440SSRHRR operates within an industrial temperature range of -40°C to 85°C and is available in a 28-WQFN (5.5mm x 3.5mm) surface-mount package. It requires a single 1.8V supply and offers low power consumption in shutdown mode.



Key features include adjustable output voltage swing and selectable TX pre-emphasis levels. The device also provides 3kV HBM ESD protection, making it suitable for demanding applications.

SN65DPHY440SSRHRR Quick Information

Product Type: Video Retimer
Canonical Name: SN65DPHY440SSRHRR MIPI DPHY Retimer
Subcategory: Video Processing ICs

SN65DPHY440SSRHRR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SN65DPHY440SSRHRR Estimated Pricing

Qty Low High
1+ $1.92 $1.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

SN65DPHY440SSRHRR Features

  • MIPI DPHY 1.1 compliant retimer.
  • Supports up to 4 lanes at 1.5Gbps.
  • Operates from -40°C to 85°C.
  • 1.8V single supply operation.
  • 28-WQFN surface mount package.

SN65DPHY440SSRHRR Applications

  • Ideal for MIPI CSI-2 applications.
  • Suitable for MIPI DSI applications.
  • Compensates for signal loss in cables.
  • Used in video display systems.

SN65DPHY440SSRHRR FAQs

7 frequently asked questions generated from this part’s specifications.
What protocols does the SN65DPHY440SSRHRR support?

The SN65DPHY440SSRHRR supports MIPI CSI/DSI protocols.

What is the maximum data rate for the SN65DPHY440SSRHRR?

The maximum data rate for the SN65DPHY440SSRHRR is 1.5 Gbps.

How many channels does this retimer have?

The SN65DPHY440SSRHRR has 4 channels.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the required supply voltage?

The device operates on a single 1.8V supply.

What package type is the SN65DPHY440SSRHRR available in?

It is available in a 28-WQFN (5.5x3.5) package.

Is the SN65DPHY440SSRHRR RoHS compliant?

Yes, the SN65DPHY440SSRHRR is RoHS3 Compliant.
