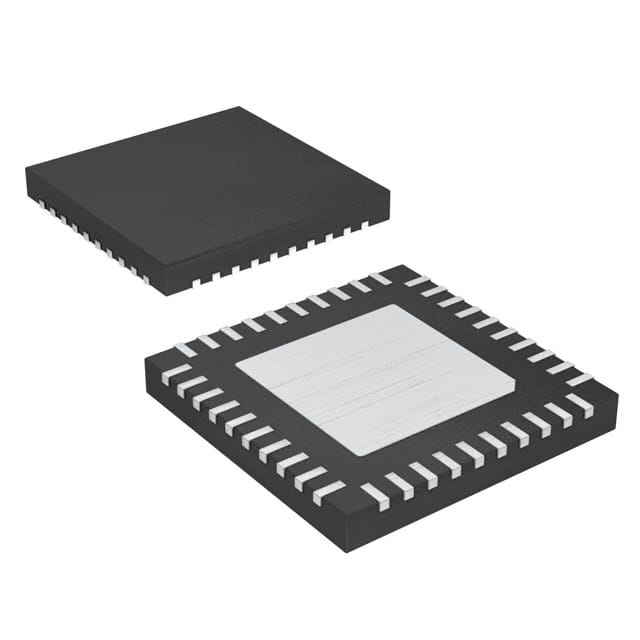

SN65DP159RSBR The Texas Instruments SN65DP159RSBR is a 4-channel video retimer supporting HDMI 2.0b and DisplayPort 1.1 standards. It operates at speeds up to 6 Gbps and is housed in a 40-WQFN package.
Mfr Part #:

SN65DP159RSBR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments SN65DP159RSBR is a 4-channel video retimer supporting HDMI 2.0b and DisplayPort 1.1 standards. It operates at speeds up to 6 Gbps and is housed in a 40-WQFN package.
✓ Total Stock: 9,242 pcs
$ Price Range: $3.61

SN65DP159RSBR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,805 pcs
On Request
5805 pcs On Request 1 On Request On Request 21+ On Request On Request
Rayichip ✓
Non-Authorised Inventory information
2,256 pcs
On Request
2256 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,181 pcs
On Request
1181 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SN65DP159RSBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Control Interface
Function
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature Range
Standards
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

SN65DP159RSBR Description

Short technical summary and product information.

The SN65DP159RSBR from Texas Instruments is an active video retimer designed for high-definition video interfaces. It supports protocols including HDMI 2.0b, DisplayPort Dual-Mode Standard Version 1.1, and DVI 1.0, enabling seamless signal conversion and enhancement.



This retimer features 4 channels and can handle data rates up to 6 Gbps. It operates within an extended temperature range of -40°C to 85°C, making it suitable for various environmental conditions. The device is controlled via an I²C interface and requires an operating voltage between 3.0V and 3.6V.



Packaged in a 40-WQFN (5x5 mm) surface-mount configuration, the SN65DP159RSBR is designed for efficient integration into printed circuit boards. It offers low power consumption, with active power draw of 435 mW at 6 Gbps and a shutdown power draw of 10 mW.



Key electrical parameters include an integrated TMDS level translator and CDR. The device also supports adaptive receiver equalization and programmable fixed equalization up to 16.5 dB, along with high-speed lane control features like pre-emphasis and transmit swing control.

SN65DP159RSBR Quick Information

Product Type: Retimer
Canonical Name: SN65DP159RSBR Retimer
Subcategory: Video Processing

SN65DP159RSBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SN65DP159RSBR Estimated Pricing

Qty Low High
1+ $3.61 $3.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

SN65DP159RSBR Features

  • Supports HDMI 2.0b and DisplayPort 1.1.
  • Operates at data rates up to 6 Gbps.
  • Features 4 high-speed channels.
  • Wide -40°C to 85°C operating temperature.
  • Surface mount 40-WQFN package.

SN65DP159RSBR Applications

  • Ideal for video display interfaces.
  • Enables high-definition signal retiming.
  • Suitable for consumer electronics.
  • Used in display connectivity solutions.

SN65DP159RSBR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum data rate for the SN65DP159RSBR?

The SN65DP159RSBR supports a maximum data rate of 6 Gbps.

How many channels does the SN65DP159RSBR have?

This retimer features 4 channels.

What is the operating temperature range for this device?

The SN65DP159RSBR operates from -40°C to 85°C.

What voltage is required for the SN65DP159RSBR?

The operating voltage range is 3.0V to 3.6V.

What protocols does the SN65DP159RSBR support?

It supports HDMI 2.0b, DisplayPort Dual-Mode Standard Version 1.1, and DVI 1.0.

What package type is the SN65DP159RSBR available in?

The SN65DP159RSBR is available in a 40-WQFN (5x5 mm) package.
