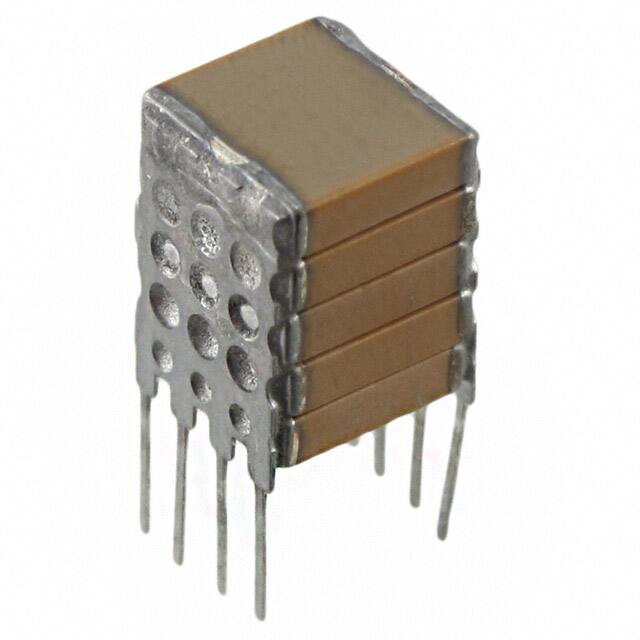

SMX43C156KAN650 This Kyocera AVX SMX43C156KAN650 is a 15 µF, 25V, X7R (VHT) ceramic capacitor in a stacked 8-lead DIP package. It is designed for SMPS filtering and high-temperature applications up to 200°C.
Mfr Part #:

SMX43C156KAN650

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
This Kyocera AVX SMX43C156KAN650 is a 15 µF, 25V, X7R (VHT) ceramic capacitor in a stacked 8-lead DIP package. It is designed for SMPS filtering and high-temperature applications up to 200°C.
✓ Total Stock: 40 pcs
$ Price Range: $140.58

SMX43C156KAN650 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request 938 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMX43C156KAN650 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Dissipation Factor
Features
Height
Industrial Grade
Lead Spacing
Lead Style
Length
Military Grade
Mounting Type
Operating Temperature
Tape & Reel
Temperature Coefficient
Tolerance
Voltage
Width
View Similar Products (0)

SMX43C156KAN650 Description

Short technical summary and product information.

The Kyocera AVX SMX43C156KAN650 is a stacked multilayer ceramic capacitor (MLCC) from the SMX series, designed for high-reliability switch-mode power supply (SMPS) filtering. It offers a nominal capacitance of 15 µF with a ±10% tolerance and a rated voltage of 25V.



This capacitor features an X7R (VHT) dielectric, a high-temperature variant rated for operation from -55°C to 200°C. It is constructed with a low-ESL stacked architecture in an 8-lead through-hole DIP package, with a lead spacing of 10.16 mm. The part is intended for demanding environments such as downhole oil exploration and aerospace electronics.



Key electrical characteristics include a maximum dissipation factor of 2.5% at 25°C and minimum insulation resistance of 100,000 MΩ at 25°C, decreasing to 1,000 MΩ at 200°C. The component is RoHS3 compliant and has an MSL of 1 (unlimited).

SMX43C156KAN650 Quick Information

Product Type: Ceramic Capacitor
Series: SMX
Canonical Name: Kyocera AVX SMX43C156KAN650 15 µF 25V X7R Stacked MLCC Capacitor
Subcategory: Stacked SMPS Capacitor

SMX43C156KAN650 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMX43C156KAN650 Estimated Pricing

Qty Low High
40+ $140.58 $140.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMX43C156KAN650 Features

  • 15 µF capacitance with ±10% tolerance.
  • Rated for 25V DC operation.
  • X7R (VHT) dielectric for 200°C operation.
  • Low ESL stacked DIP construction.
  • Through-hole mounting with 10.16 mm lead spacing.

SMX43C156KAN650 Applications

  • Ideal for SMPS filtering circuits.
  • Suitable for high-temperature downhole electronics.
  • Used in aerospace and geophysical probes.
  • Designed for DC filter in motor drives.

SMX43C156KAN650 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of the SMX43C156KAN650?

The nominal capacitance is 15 µF with a tolerance of ±10%.

What is the rated voltage of this capacitor?

The rated voltage is 25V DC.

What is the operating temperature range?

The operating temperature range is -55°C to 200°C.

What is the temperature coefficient of this capacitor?

The temperature coefficient is X7R (VHT), a high-temperature variant for 200°C operation.

What package type does the SMX43C156KAN650 use?

It uses a through-hole Stacked DIP, 8 Lead package with a lead spacing of 10.16 mm.

What are the key features of this capacitor?

Key features include low ESL (stacked construction) and high-temperature operation up to 200°C.

What is the dissipation factor of this capacitor?

The maximum dissipation factor is 2.5% at 25°C, tested at 1.0±0.2 Vrms and 1 kHz.
