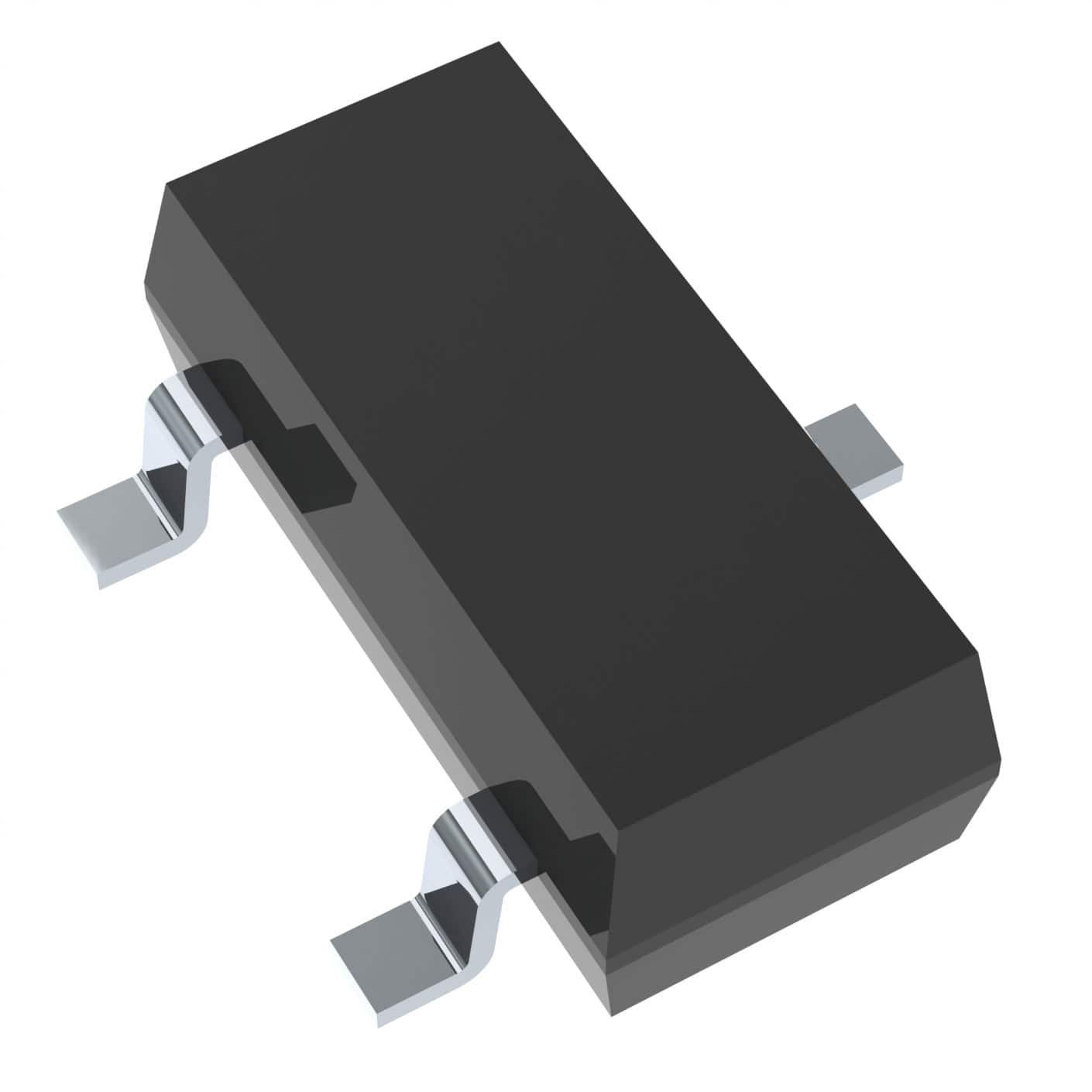

The Skyworks Solutions SMV2023-004LF is a hyperabrupt junction varactor diode designed for applications requiring low phase noise Voltage-Controlled Oscillators (VCOs) in wireless systems. This diode features a high capacitance ratio and low series resistance, making it suitable for RF and microwave VCOs and phase shifters.
Key electrical specifications include a capacitance of 5.4pF at 4V and 50MHz, a capacitance ratio of 4.2 (C4/C20), a Q factor of 500 at 4V/50MHz, and a maximum voltage rating of 22V. The operating temperature range is -55°C to 125°C.
Packaged in a surface-mount SOT-23-3 (TO-236-3, SC-59) case, the SMV2023-004LF is rated MSL1 and 260°C per JEDEC J-STD-020. It is also compliant with RoHS3 standards and is halogen-free.
This varactor diode is part of the SMV2019 to SMV2023 series, designed for performance and reliability in demanding wireless applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22V.
SOT-23-3 (TO-236-3, SC-59, SOT-23-3).
5.4pF typical.
4.2 typical.
500 typical at 4V, 50MHz.
-55°C to 125°C.
Yes, it is lead free and halogen free as per the datasheet.
