| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Capacitance Ratio | |
| Capacitance Ratio Condition | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

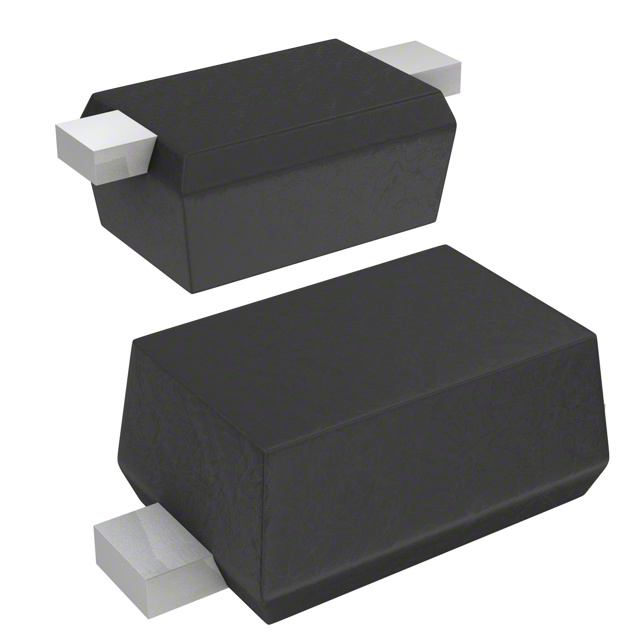

The SMV1705-079LF is a single varactor diode from Skyworks Solutions, designed for voltage-controlled tuning applications. It operates with a reverse voltage rating of 12V and exhibits a typical capacitance of 6.6pF measured at 4V and 1MHz. The capacitance ratio (C1/C4) is rated at 3.
This device is housed in the SC-79 (SOD-523) surface-mount package and is supplied in the SC-79 format. It supports an operating temperature range of -55°C to 125°C (junction temperature), making it suitable for a wide variety of environments.
The SMV1705-079LF is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). It is intended for use in RF and microwave tuning circuits where controlled capacitance variation with voltage is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.35 | $5.35 |
| 10+ | $3.58 | $3.58 |
| 100+ | $2.83 | $2.83 |
| 500+ | $2.65 | $2.65 |
| 1,000+ | $2.47 | $2.47 |
| 3,000+ | $2.39 | $2.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse voltage rating is 12V.
The typical capacitance is 6.6pF at VR=4V, f=1MHz.
The capacitance ratio C1/C4 is 3.
It is offered in SC-79, SOD-523 surface-mount package. The supplier device package is SC-79.
The operating temperature range is -55°C to 125°C (junction temperature).
