| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,930 pcs
|
2930 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Capacitance @ Vr, F | |
| Capacitance Ratio | |
| Capacitance Ratio Condition | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Vr, F | |
| Supplier Device Package | |
| Voltage |
The Skyworks Solutions SMV1253-011LF is a silicon hyperabrupt junction varactor diode from the SMV1247-SMV1255 series. It is specifically designed for Voltage Controlled Oscillators (VCOs) requiring low tuning voltage operation and is suitable for high-volume commercial systems.
This varactor diode offers a typical capacitance of 4.8pF at 4.7V and 50MHz, with a capacitance ratio of 12.3 (C0.3V/C4.7V). It has a voltage rating of 15V and a typical Q factor of 350 at 3V and 50MHz. The operating temperature range is from -55°C to 125°C.

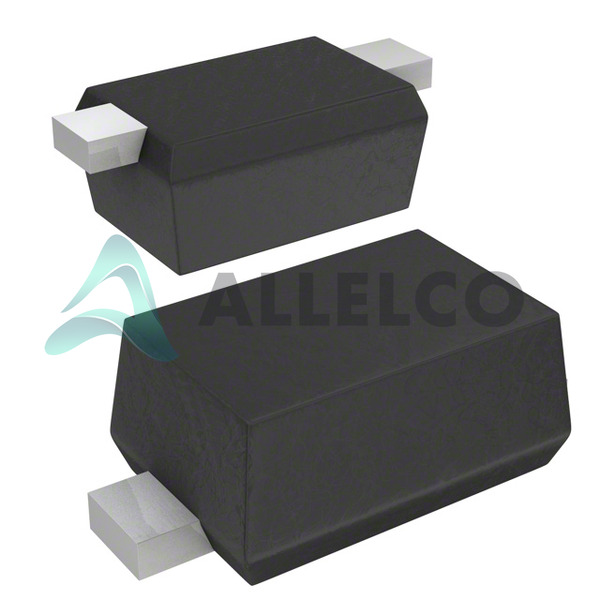

The SMV1253-011LF comes in a surface mountable SOD-323 package (also referred to as SC-76). Skyworks Green™ products are compliant with all applicable legislation and are halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15V.
SC-76, SOD-323 (supplier device package SOD-323).
4.8pF typical at 4.7V, 50MHz.
12.3 (C0.3/C4.7).
350 typical at 3V, 50MHz.
-55°C to 125°C.
Single varactor diode.
