| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,391 pcs
|
5391 pcs | On Request | 1 | On Request | On Request | 1143+ | On Request | On Request | |
|
1,690 pcs
|
1690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,690 pcs
|
1690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Capacitance Ratio | |
| Capacitance Ratio Condition | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The SMV1233-011LF is a hyperabrupt junction varactor diode from Skyworks Solutions, designed for low tuning voltage VCOs and high-Q resonators. It features a maximum reverse voltage of 15V, a typical capacitance of 1.1 pF at Vr=6V and f=50MHz, and a capacitance ratio of 3.3 (C1/C6). The device is characterized for capacitance and resistance over temperature, making it suitable for wireless system VCOs operating beyond 10 GHz.

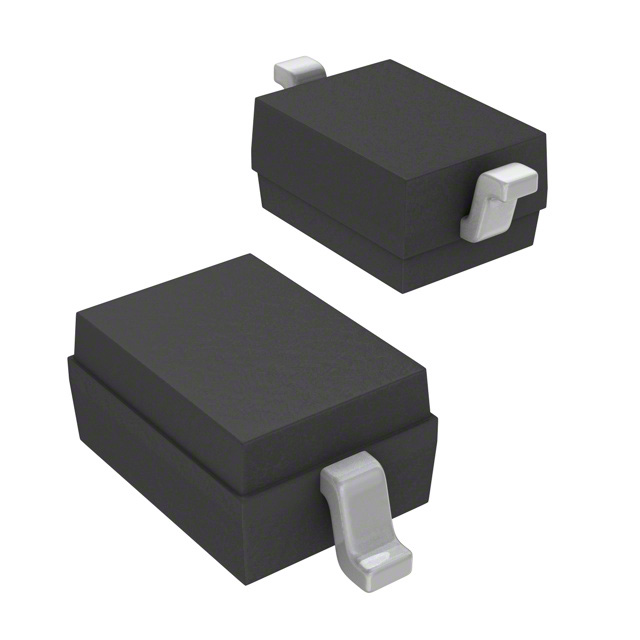

The varactor is housed in a surface mount SOD-323 (SC-76) package, rated MSL1 at 260°C per JEDEC J-STD-020. It operates over a temperature range of -55°C to 125°C. The SMV123x series offers low series resistance for low phase noise, enabling high-performance oscillator designs.
This component is RoHS3 compliant and REACH unaffected, though compliance status is unverified. It is intended for high-volume commercial applications such as low tuning voltage VCOs and high-Q resonator circuits.
15 V.
SOD-323 (SC-76) surface mount package.
1.1 pF at Vr=6V, f=50MHz.
3.3.
-55°C to 125°C.
RoHS3 compliant (unverified).
MSL 1 Unlimited (260°C per JEDEC J-STD-020, unverified).
