SMTSO-M3-8ET The PEM SMTSO-M3-8ET is a surface mount standoff with an M3 thread, designed for P.C. boards. It offers a pushout force of 56.5 lbs and a rated current of 37 Amps.
Mfr Part #:

SMTSO-M3-8ET

Available from 1 distributors
Mfr Name: PEM
PEM
The PEM SMTSO-M3-8ET is a surface mount standoff with an M3 thread, designed for P.C. boards. It offers a pushout force of 56.5 lbs and a rated current of 37 Amps.
✓ Total Stock: 113 pcs
$ Price Range: $0.99

SMTSO-M3-8ET Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
113 pcs
On Request
113 pcs On Request 1 On Request On Request On Request On Request 2026-04-29 06:15:11
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMTSO-M3-8ET Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Pitch
Rated Current
Thread Size
View Similar Products (0)

SMTSO-M3-8ET Description

Short technical summary and product information.

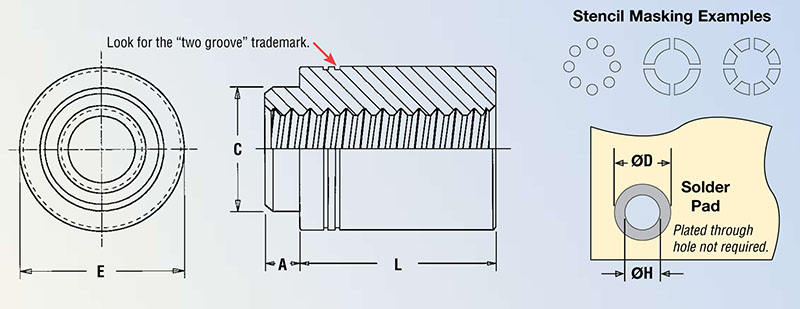

The PEM SMTSO-M3-8ET is a ReelFast® surface mount standoff featuring an internal M3 thread. Constructed from lead-free carbon steel with an electro-plated tin finish, this standoff is designed for use in P.C. boards with a thickness of .062” single layer FR-4.



Key mechanical specifications include a maximum height of 1.53mm, a length of 8mm, and a maximum width of 4.09mm. The minimum solder pad diameter required is 6.2mm, with a pitch of 16mm. This component offers a pushout force of 56.5 lbs (251 N) and a torque-out force of 8.56 in. lbs (1 N•m).



Electrically, the SMTSO-M3-8ET has a rated current of 37 Amps. It is supplied on reels with 375 parts per reel, suitable for automated surface mount assembly processes.

SMTSO-M3-8ET Quick Information

Product Type: Surface Mount Standoff
Series: ReelFast®
Canonical Name: PEM SMTSO-M3-8ET Surface Mount Standoff
Subcategory: Surface Mount Standoffs

SMTSO-M3-8ET Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMTSO-M3-8ET Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMTSO-M3-8ET Features

  • Surface mount standoff with M3 thread.
  • Lead-free carbon steel construction.
  • Electro-plated tin finish.
  • Rated for 37 Amps current.
  • Supplied on reels of 375 parts.

SMTSO-M3-8ET Applications

  • Ideal for P.C. board mounting.
  • Suitable for automated assembly.
  • Used in electronic enclosures.
  • Provides component spacing.

SMTSO-M3-8ET FAQs

7 frequently asked questions generated from this part’s specifications.
What is the thread size of the SMTSO-M3-8ET?

M3 x 0.5

What is the rated current of this standoff?

37 Amps

What is the pushout force?

56.5 lbs (251 N)

What is the torque-out force?

8.56 in. lbs (1 N·m)

What mounting type is used?

Surface Mount

What material is the standoff made of?

Lead-Free Carbon Steel

What is the finish on the standoff?

Annealed, ASTM B 545 Class A with clear preservative coating, electro-plated tin.
