| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
874 pcs
|
874 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Thickness | |
| Failure Rate | |
| Mounting Type | |
| Pitch | |
| Product Type | |
| Rated Current | |
| Thread Size |
The PEM SMTSO-M3-3ET is a surface mount standoff from the ReelFast® series, designed for efficient installation on printed circuit boards. It features an internal M3 x 0.5 thread with a 6H, ASME B1.13M specification, ensuring reliable fastening.

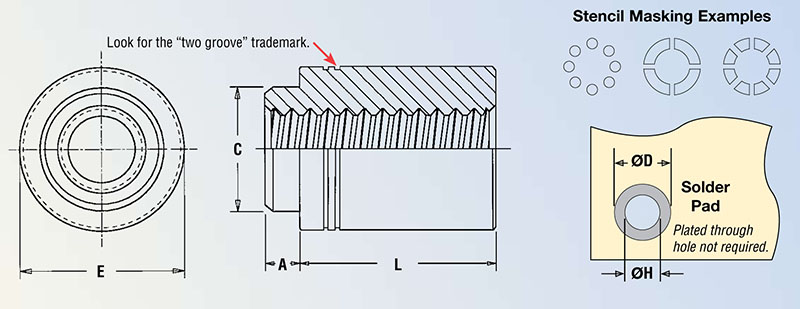

Constructed from lead-free carbon steel with an annealed, electro-plated tin finish, this standoff is suitable for P.C. boards. Key dimensions include an A max of 1.53mm, an L of 3mm ± 0.13mm, and a C max of 4.09mm. The minimum solder pad diameter is 6.2mm, with a pitch of 12mm.
Performance data indicates a typical pushout force of 251 N and a typical torque-out force of 8.56 N•m. The rated current is 37 Amps. It is designed for use with 0.062" single layer FR-4 boards.
This component is supplied on reels of 1000 pieces, facilitating automated assembly processes. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
M3 x 0.5 internal thread per ASME B1.13M, 6H tolerance.
Lead-free carbon steel.
Annealed, electro-plated tin per ASTM B 545 Class A with clear preservative coating.
Surface mount; designed for PC boards. Minimum solder pad diameter 6.2 mm.
37 Amps.
Typical pushout force 251 N; typical torque-out 8.56 N·m.
1000 pieces per reel on tape.
