The PEM SMTSO-M3-2ET is a surface mount standoff from the ReelFast series, designed for efficient assembly on printed circuit boards. This component features an M3 x 0.5 thread specification compliant with 6H, ASME B1.13M standards, ensuring reliable fastening.
Constructed from lead-free carbon steel, the standoff undergoes an annealing process and is finished with ASTM B 545, Class A, clear preservative coating, and electro-plated tin for durability and corrosion resistance. It is designed for use in sheets of specified hardness.

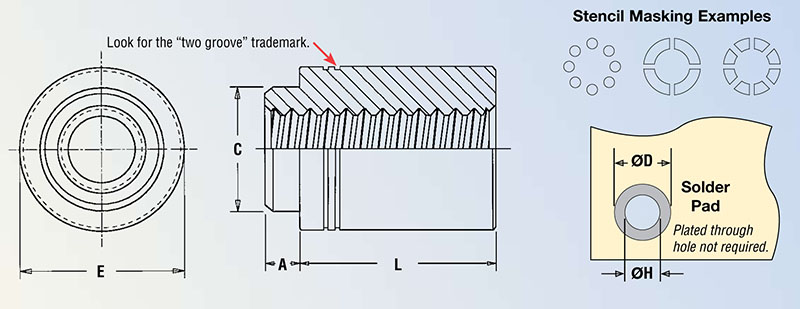

With a maximum 'A' dimension of 1.53mm, an 'L' dimension of 2mm, and a maximum 'C' dimension of 4.09mm, this standoff offers compact dimensions. The minimum solder pad diameter required is 6.2mm, with a pitch of 12mm. Each reel contains 1500 units, facilitating high-volume production.
This surface mount standoff is suitable for applications requiring secure component mounting on PCBs, contributing to streamlined manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is M3 x 0.5.
It is made from lead-free carbon steel.
The standard finish is Annealed, ASTM B 545, Class A with Clear Preservative Coating, Electro-Plated Tin.
The dimensions are A Max 1.53mm, L 2mm, and C Max 4.09mm.
There are 1500 parts per reel.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
