SMTSO-M2-4ET
PEM
The PEM SMTSO-M2-4ET is a ReelFast® surface mount standoff designed for metric applications. It features internal threading and a durable construction.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Pitch | |
| Thread Size |
The PEM SMTSO-M2-2ET is a ReelFast surface mount standoff designed for secure component mounting. It features an internal M2 x 0.4 thread specification compliant with ASME B1.13M.
Constructed from lead-free carbon steel, this standoff undergoes an annealing process and is finished with ASTM B 545, Class A electro-plated tin, including a clear preservative coating. It is designed for use in PC boards with a specified sheet hardness.

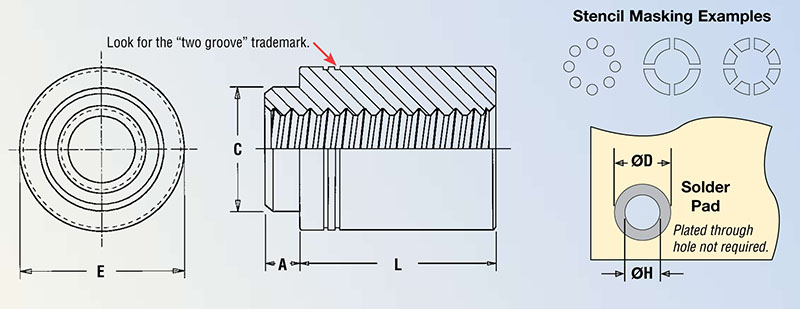

The standoff has a maximum 'A' dimension of 1.53mm, an 'L' dimension of 2mm (±0.13mm), and a maximum 'C' dimension of 3.6mm. The minimum solder pad diameter required is 6.2mm, with a pitch of 12mm.
This component is supplied on reels, with 1500 parts per reel, and is suitable for surface mounting applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is M2 x 0.4.
It is made from lead-free carbon steel.
The standard finish is Annealed, ASTM B 545, Class A with Clear Preservative Coating, Electro-Plated Tin.
There are 1500 parts per reel.
The mounting type is Surface Mount.
