The PEM SMTSO-440-12ET is a ReelFast surface mount standoff from the SMTSO product family. This component is designed for direct mounting onto printed circuit boards using surface mount technology.
Key specifications include a #4-40 thread size (2B, ASME B1.1) and a material of lead-free carbon steel with a standard finish of annealed, ASTM B 545, Class A with clear preservative coating and electro-plated tin. The standoff is intended for use in PC boards and has a maximum sheet thickness of 0.06 inches.

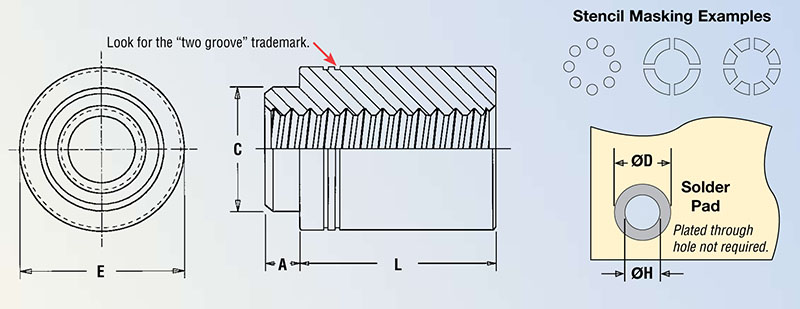

Installation is via surface mount. The standoff has dimensions such as A Max of 0.06 inches, E of 0.219 inches, a hole size in sheet of 0.166 inches, L of 0.375 inches, C Max of 0.161 inches, and a minimum solder pad diameter D of 0.244 inches. The pitch is 16mm.
Performance data indicates a typical pushout force of 56.5 lbs (251 N) and a typical torque-out of 8.56 in•lbs (1 N•m) when tested on .062” single layer FR-4. It also has a rated current of 25 amps.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is #4-40.
It is made from lead-free carbon steel.
The standard finish is annealed, ASTM B 545, Class A with clear preservative coating, and electro-plated tin.
The mounting type is Surface Mount.
There are 300 parts per reel.
The typical pushout force is 56.5 lbs (251 N).
The typical torque-out is 8.56 in•lbs (1 N•m).
