| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Thickness | |
| Failure Rate | |
| Length | |
| Material | |
| Mounting Type | |
| Pitch | |
| Plating | |
| Product Type | |
| Tape & Reel |

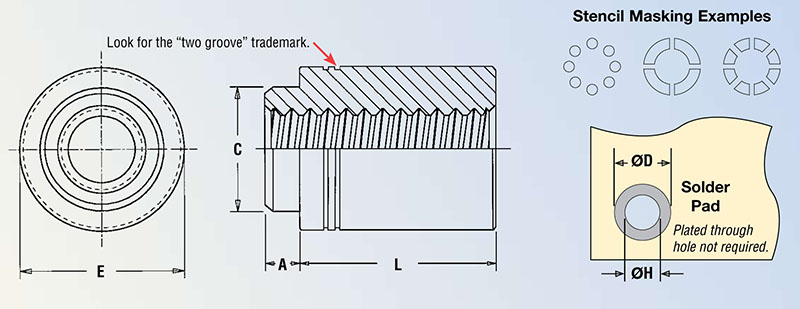

The PEM SMTSO-4.2-3ET is a surface mount standoff from the ReelFast series, designed for efficient and reliable attachment to printed circuit boards. Constructed from lead-free carbon steel and finished with an annealed tin plating (ASTM B 545, Class A), this component offers durability and corrosion resistance.
Key mechanical specifications include a maximum length of 1.53mm, a nominal length of 3mm, and a maximum width of 6.22mm. The standoff features a 4.2mm thru-hole diameter, suitable for standard PCB mounting, and a minimum solder pad diameter of 9.37mm. The pitch is 16mm.
This type SMTSO standoff is unthreaded and designed for surface mounting, simplifying assembly processes. It is supplied on reels with a standard package quantity of 800 units, facilitating high-volume manufacturing.
The component is specified for use with 0.062" single-layer FR-4 PC boards. Its RoHS3 compliant status and MSL 1 rating indicate suitability for various electronic applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standoff is made from lead-free carbon steel.
The standoff has an annealed tin plating.
The thru-hole diameter is 4.2mm.
The standard package quantity is 800 units per reel.
The product is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The product is REACH Unaffected.
