SMTSO-4.2-10ET The PEM SMTSO-4.2-10ET is a ReelFast surface mount standoff designed for PC boards. It features an unthreaded design and is made of carbon steel with a tin finish.
Mfr Part #:

SMTSO-4.2-10ET

Available from 1 distributors
Mfr Name: PEM
PEM
The PEM SMTSO-4.2-10ET is a ReelFast surface mount standoff designed for PC boards. It features an unthreaded design and is made of carbon steel with a tin finish.
✓ Total Stock: 6 pcs

SMTSO-4.2-10ET Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
6 pcs
6 pcs On Request 1 On Request On Request On Request On Request On Request

SMTSO-4.2-10ET Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
SVHC Present
Tape & Reel

SMTSO-4.2-10ET Description

Short technical summary and product information.

The PEM SMTSO-4.2-10ET is a ReelFast surface mount standoff from the SMTSO series. This component is designed for easy installation onto printed circuit boards using surface mount technology.

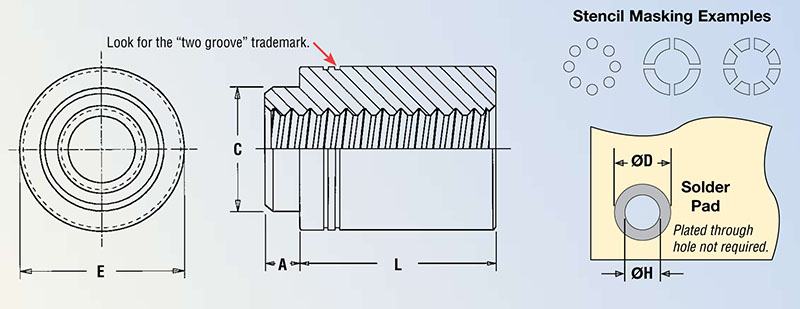

Key specifications include an unthreaded design, a carbon steel construction with a tin finish (Annealed, ASTM B 545, Class A with Clear Preservative Coating, Electro-Plated Tin), and suitability for PC boards with a thickness of 0.062 inches. The standoff has a maximum height of 1.53mm, a length of 10mm, and a maximum diameter of 6.22mm. The minimum solder pad diameter required is 9.37mm, with a pitch of 16mm. The thru-hole diameter is 4.2mm.



This product is supplied on reels, with 300 parts per reel, facilitating automated assembly processes. The SMTSO-4.2-10ET is suitable for various electronic applications where reliable mounting and spacing are required.



Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1 Unlimited. However, these compliance details are sourced from existing database information and are marked as low confidence.

SMTSO-4.2-10ET Quick Information

Product Type: Surface Mount Standoff
Series: ReelFast
Canonical Name: PEM SMTSO-4.2-10ET ReelFast Surface Mount Standoff
Subcategory: Surface Mount

SMTSO-4.2-10ET Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMTSO-4.2-10ET Features

  • ReelFast surface mount standoff.
  • Unthreaded design for P.C. boards.
  • Carbon steel with tin plating.
  • Supplied on reels of 300.
  • Suitable for 0.062 inch board thickness.

SMTSO-4.2-10ET Applications

  • Provides component mounting.
  • Facilitates board spacing.
  • Used in automated assembly.
  • Suitable for P.C. board applications.

SMTSO-4.2-10ET FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the SMTSO-4.2-10ET?

The pitch is 16mm.

What is the mounting type for this part?

Surface Mount.

What material is the SMTSO-4.2-10ET made from?

Carbon Steel.

What is the finish on the SMTSO-4.2-10ET?

Tin (electro-plated, ASTM B 545, Class A with clear preservative coating).

What board thickness is the SMTSO-4.2-10ET designed for?

0.062 inches.

What is the length of the SMTSO-4.2-10ET?

10mm.

How many parts are on a reel?

300 parts per reel.
