The Penn Engineering SMTSO-3.6-4ET is a ReelFast® surface mount standoff, part of the SMTSO product family. This component is constructed from carbon steel with a standard tin electro-plated finish, meeting ASTM B 545, Class A specifications with a clear preservative coating. It is designed for mounting onto P.C. boards.

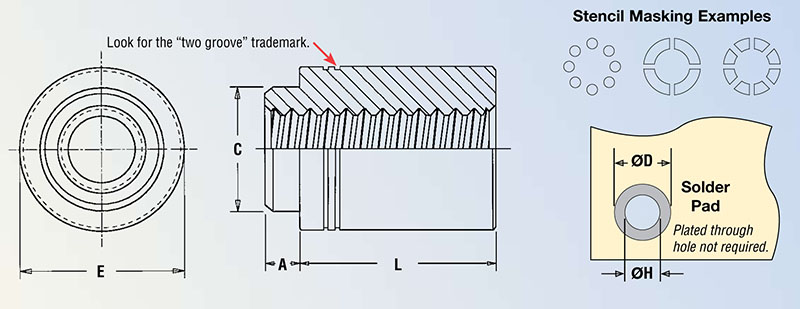

Key mechanical dimensions include a maximum 'A' dimension of 1.53mm, an 'L' dimension of 4mm with a tolerance of ±0.13mm, and a maximum 'C' dimension of 5.28mm. The minimum solder pad diameter ('D') is 7.77mm, with a pitch of 12mm. The standoff features a thru-hole diameter of 3.6mm with a tolerance of +0.10/-0.08mm. This unthreaded standoff is supplied on reels of 900 pieces, making it suitable for automated assembly processes.
This product is suitable for applications requiring reliable standoffs on printed circuit boards. Its surface mount design facilitates integration into modern electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The mounting type is surface mount.
The fastener material is carbon steel.
The standard finish is Annealed, ASTM B 545, Class A with Clear Preservative Coating, Electro-Plated Tin.
There are 900 parts per reel.
The thru-hole size is 3.6mm with a tolerance of +0.10/-0.08mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
