| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Brand | |
| Mounting Type | |
| Pitch | |
| Product Type | |
| Rated Current | |
| Type |
The PEM SMTSO-143-12ET is a ReelFast® surface mount standoff designed for use in PC boards. It is constructed from lead-free carbon steel with an annealed finish, compliant with ASTM B 545, Class A, and features a clear preservative coating with electro-plated tin.

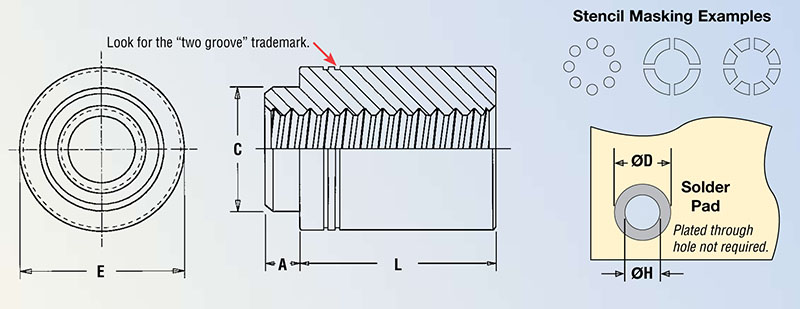

This standoff has a mounting type of surface mount and belongs to the SMTSO product family. Key mechanical dimensions include an A Max of 0.06 inches, E of 0.281 inches, and a hole size in the sheet of 0.213 inches. The L dimension is 0.375 inches, C Max is 0.208 inches, and the minimum solder pad diameter D is 0.306 inches. The pitch is 16mm, and the thru-hole size is 0.143 inches.
It is rated for 34 Amps and is tested on single-layer FR-4 material with a thickness of 0.062 inches. The product comes packaged 300 parts per reel, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standoff is made from lead-free carbon steel.
The standard finish is Annealed, ASTM B 545, Class A with Clear Preservative Coating, Electro-Plated Tin.
There are 300 parts per reel.
The mounting type is Surface Mount.
The rated current is 34 Amps.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
