| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
294 pcs
|
294 pcs | On Request | 1 | On Request | On Request | 1443 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Brand | |
| Mounting Type | |
| Pitch | |
| Product Type | |
| SVHC Present | |
| Tape Width | |
| Thread Size |
The PEM SMTRAM2-6-5ET is a metric Surface Mount R’Angle® Fastener from the SMTRA product family. This fastener features an M2 x 0.4 thread size and is constructed from zinc diecast material with an electro-plated tin finish.

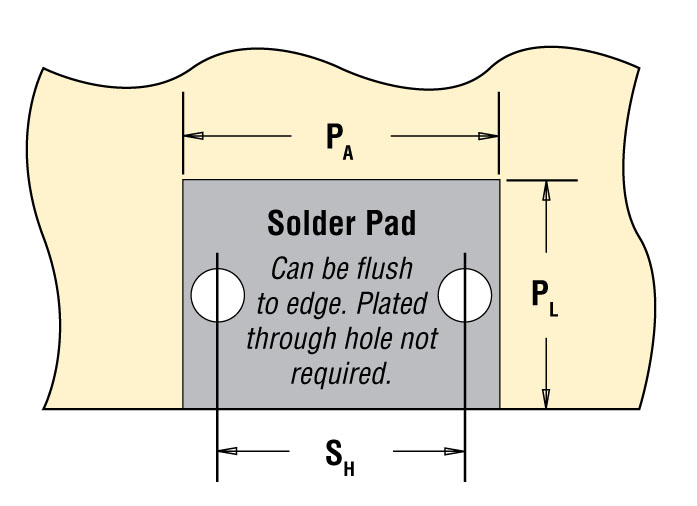

Designed for surface mounting, it has a pad width minimum of 6.62mm and a pad length minimum of 4.57mm. The mounting hole diameter is 4mm, with a pitch of 16mm and hole spacing of 4mm. The fastener has a tape width of 24mm and comes in a standard package quantity of 375 parts per reel.
Key dimensions include A: 5.5mm, B: 1mm, C: 1.5mm, D: 3.5mm, F (Height): 6mm, G: 8.4mm, J: 0.5mm, K: 0.75mm, N (Max): 1.22mm, P (Max): 1mm, and T: 2.65mm. The hole size in the sheet is 1.35mm. This component is categorized as an 'OtherFasteners' product type.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is M2 x 0.4.
The fastener is made from zinc diecast.
The standard finish is Annealed, ASTM B545, Class A with Clear Preservative Coating, Electro-Plated Tin.
There are 375 parts per reel.
The mounting type is Surface Mount.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
