| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Length | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Tape & Reel | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range | |
| Width |

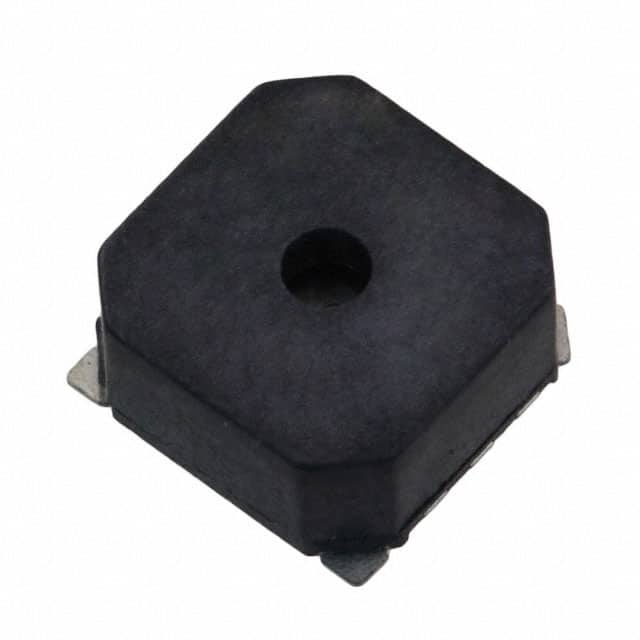

The SMT-0825-T-R is an electromechanical/magnetic buzzer from PUI Audio, Inc. It operates at a rated voltage of 3.6V with a voltage range of 2.5V to 4.5V, drawing 90mA current. The buzzer produces a single-tone output at 2.5kHz with a sound pressure level of 87dB measured at 10cm under 3.6V.
Designed for surface mount assembly, the component measures 8.50mm x 8.50mm x 4.10mm and features top-port sound emission. It is terminated with solder pads for reliable PCB attachment. The operating temperature range is -30°C to 70°C, suitable for various environments.
This buzzer is commonly used in alarm systems, indicator circuits, and consumer electronics where a compact audible alert is required. Its magnetic transducer technology provides efficient sound generation with a single tone mode.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.02 | $4.02 |
| 10+ | $3.17 | $3.17 |
| 25+ | $2.89 | $2.89 |
| 50+ | $2.69 | $2.69 |
| 100+ | $2.53 | $2.53 |
| 250+ | $2.52 | $2.52 |
| 500+ | $2.28 | $2.28 |
| 1,000+ | $2.06 | $2.06 |
| 5,000+ | $2.05 | $2.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 3.6V, with an operating range of 2.5V to 4.5V.
The buzzer operates at a frequency of 2.5kHz (single tone).
The SPL is 87dB at 3.6V, measured at 10cm.
It is a transducer requiring external drive.
Surface mount with solder pads termination, top port location.
90mA at rated voltage.
8.50mm x 8.50mm x 4.10mm.
