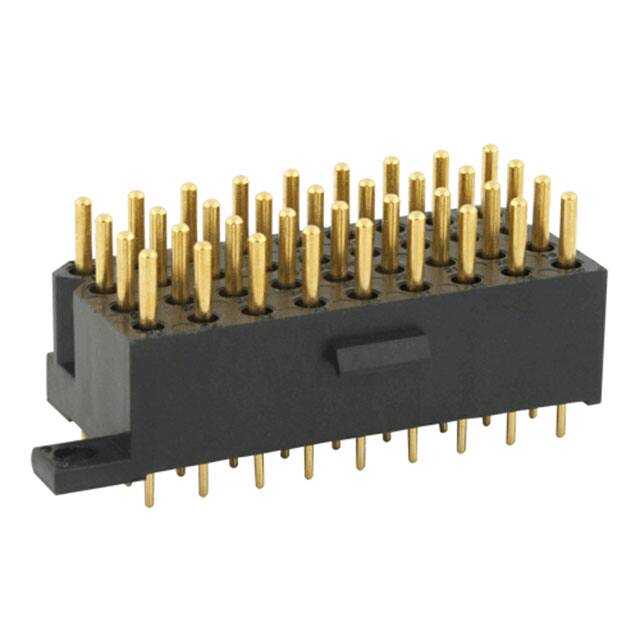

SMS36GE4 36-position, 5.08mm pitch header with male pins, through hole mounting, rated 7.5A. Features locking ramp, mounting flange, and gold contact finish.
Mfr Part #:

SMS36GE4

Available from 1 distributors
Mfr Name: Souriau-Sunbank by Eaton
Souriau-Sunbank by Eaton
36-position, 5.08mm pitch header with male pins, through hole mounting, rated 7.5A. Features locking ramp, mounting flange, and gold contact finish.
✓ Total Stock: 3 pcs
$ Price Range: $24.95 - $38.60

SMS36GE4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMS36GE4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Ingress Protection
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

SMS36GE4 Description

Short technical summary and product information.

The SMS36GE4 is a 36-position unshrouded header from Souriau-Sunbank by Eaton, designed for board-to-cable/wire applications. It features male pins arranged in 9 rows with a pitch of 5.08mm (0.200") and row spacing of 5.08mm. The header uses through hole mounting with solder termination, ensuring robust mechanical attachment.



Electrical rating is 7.5A per contact, with gold plated brass contacts (16.0µin / 0.41µm thickness) for reliable low-resistance connections. The insulation is black polyester, glass filled, rated UL94 V-0 for flammability. Operating temperature range is -55°C to 105°C, and ingress protection is IP40.



Mechanical features include a locking ramp for secure mating, a mounting flange for additional stability, and an overall contact length of 0.939" (23.85mm). The insulation height is 13.35mm (0.526"), and contact length is 3.50mm (0.138"). This header is suitable for applications requiring high pin count in a compact, durable package.

SMS36GE4 Quick Information

Product Type: Header, Male Pins
Canonical Name: Header, Male Pins, 36 Position, 5.08mm Pitch, Through Hole, Solder
Subcategory: Male Pins

SMS36GE4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMS36GE4 Estimated Pricing

Qty Low High
1+ $38.60 $38.60
10+ $32.80 $32.80
20+ $31.08 $31.08
100+ $24.95 $24.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMS36GE4 Features

  • 36 positions in 9 rows at 5.08mm pitch.
  • Rated for 7.5A continuous current.
  • Gold plated brass contacts for reliability.
  • Through hole solder termination.
  • Locking ramp for secure connection.

SMS36GE4 Applications

  • Connects PCBs to wire harnesses.
  • Used in equipment requiring high pin density.
  • Suitable for signal and power transmission.

SMS36GE4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SMS36GE4 have?

36 positions.

What is the pitch of this header?

5.08mm (0.200").

What is the current rating?

7.5A per contact.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 105°C.

What contact finish is used?

Gold, 16.0µin (0.41µm) thickness.

How many rows does it have?

9 rows with 5.08mm row spacing.
