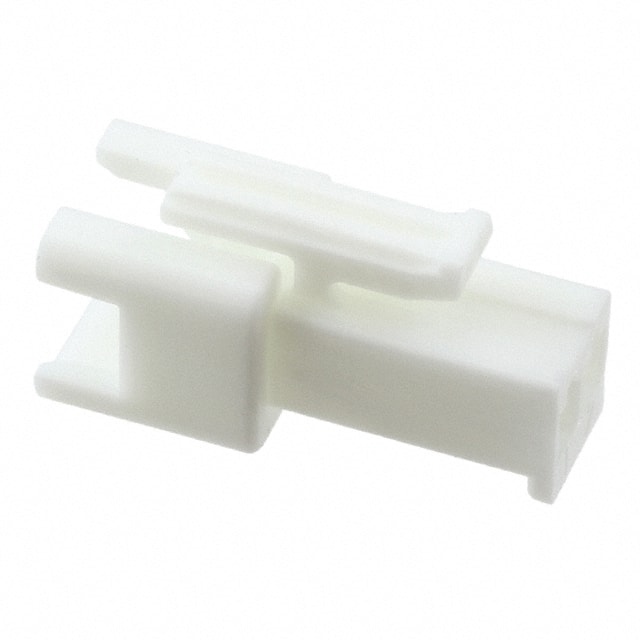

SMR-02V-N JST SMR-02V-N is a 2-position, 2.50mm pitch receptacle housing for wire-to-wire connectors. It features crimp termination, latch lock fastening, and is rated for 3A and 250V.
Mfr Part #:

SMR-02V-N

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST SMR-02V-N is a 2-position, 2.50mm pitch receptacle housing for wire-to-wire connectors. It features crimp termination, latch lock fastening, and is rated for 3A and 250V.
✓ Total Stock: 10 pcs
$ Price Range: $0.04 - $0.10

SMR-02V-N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
DYNACO PRODUCTS ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMR-02V-N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Current Rating
Fastening Type
Insulation Resistance
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Termination Style
Voltage Rating
Withstanding Voltage
View Similar Products (0)

SMR-02V-N Description

Short technical summary and product information.

The JST SMR-02V-N is a 2-position receptacle housing from the SM series, designed for 2.50mm pitch wire-to-wire connections. It accepts male pin contacts (sold separately) and uses a crimp termination method. The housing is natural in color and features a latch lock fastening mechanism for secure mating.



Electrical ratings include 3A AC/DC maximum current and 250V AC/DC maximum voltage. Contact resistance is 10 mΩ initial and 20 mΩ after environmental tests. Insulation resistance is 500 MΩ minimum, and the housing withstands 1500 VAC for one minute. Operating temperature range is -25°C to +85°C.



The housing is free-hanging (in-line) mountable and can be panel mounted with a thickness of 0.5 to 2.0 mm. It accepts wire sizes AWG #28 to #22 (0.08 to 0.33 mm²). The SM series is known for high contact pressure and reliable housing construction, suitable for high-density, small current applications.

SMR-02V-N Quick Information

Product Type: Rectangular Connector Housing
Series: SM
Canonical Name: JST SM Series 2 Position 2.50mm Pitch Receptacle Housing
Subcategory: Wire-to-Wire Connector Housing

SMR-02V-N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMR-02V-N Estimated Pricing

Qty Low High
1+ $0.10 $0.10
10+ $0.07 $0.07
25+ $0.06 $0.06
100+ $0.06 $0.06
250+ $0.05 $0.05
1,000+ $0.05 $0.05
3,000+ $0.05 $0.05
10,000+ $0.04 $0.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMR-02V-N Features

  • 2-position, 2.50mm pitch receptacle housing.
  • Rated for 3A and 250V operation.
  • Crimp termination with latch lock fastening.
  • Accepts AWG #28 to #22 wire.
  • RoHS2 compliant and free-hanging mount.

SMR-02V-N Applications

  • Wire-to-wire connections in small appliances.
  • High-density internal wiring in electronics.
  • Panel mount applications with 0.5-2.0mm thickness.

SMR-02V-N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

2 positions.

What is the pitch?

2.50mm.

What is the current rating?

3A AC/DC max.

What is the voltage rating?

250V AC/DC max.

What is the mounting type?

Free hanging (in-line) or panel mount with 0.5 to 2.0 mm panel thickness.

What wire sizes are compatible?

AWG #28 to #22 (0.08 to 0.33 mm²).

What is the operating temperature range?

-25°C to +85°C.
