| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,781 pcs
|
8781 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applicable Panel Thickness | |
| Applicable Wire | |
| Color | |
| Connector Type | |
| Contact Resistance (Maximum @ After Environmental Tests) | |
| Contact Resistance (Maximum @ Initial) | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

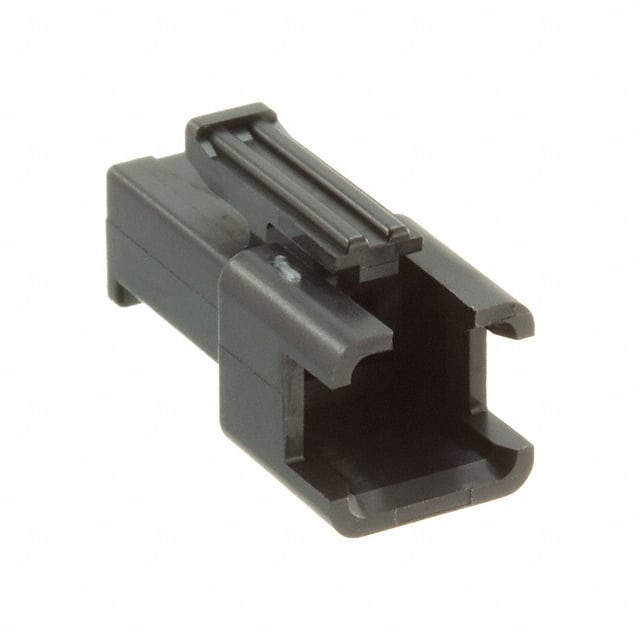

The JST SMR-02V-B is a 2 position receptacle housing from the SM series of 2.50mm pitch, disconnectable crimp style wire-to-wire connectors. Designed for reliable performance in high-density, small current applications, this housing accepts male pin contacts and is terminated via crimp.
Key specifications include a current rating of 3 A AC/DC maximum and a voltage rating of 250 V AC/DC maximum. The operating temperature range is -25°C to +85°C, including temperature rise. Contact resistance is 10 mΩ maximum initial and 20 mΩ maximum after environmental tests, with insulation resistance of 500 MΩ minimum and withstanding voltage of 1500 VAC for one minute.
The housing is black, features a latch lock fastening mechanism for secure mating, and is free hanging (in-line) mountable. It accepts wire sizes AWG #28 to #22 (0.08 to 0.33 mm²) and can be mounted on panels with thickness from 0.5 to 2.0 mm. The part is RoHS2 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.07 | $0.07 |
| 25+ | $0.07 | $0.07 |
| 100+ | $0.06 | $0.06 |
| 250+ | $0.06 | $0.06 |
| 1,000+ | $0.05 | $0.05 |
| 3,000+ | $0.05 | $0.05 |
| 5,000+ | $0.05 | $0.05 |
| 10,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SMR-02V-B has 2 positions in a single row.
The pitch is 2.50 mm.
The current rating is 3 A AC/DC maximum.
The voltage rating is 250 V AC/DC maximum.
The mounting type is free hanging (in-line).
The housing accepts AWG #28 to #22 wire (0.08 to 0.33 mm²).
The operating temperature range is -25°C to +85°C.
