| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
406 pcs
|
406 pcs | On Request | 1 | On Request | On Request | 2009 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Continuous Forward Current | |
| Current | |
| Forward Voltage | |
| Height (Max) | |
| Lead Spacing | |
| Lead Style | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature Range | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

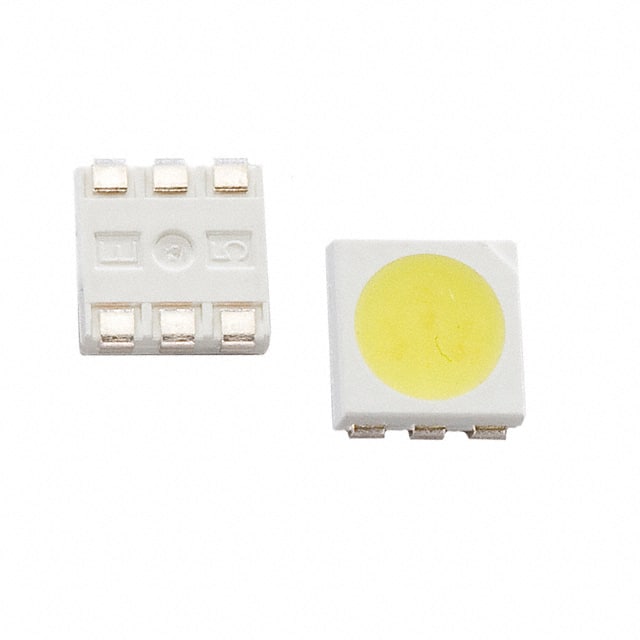

The Bivar Inc. SMP6-UWDC is a cool white LED designed for indication and backlighting applications. It utilizes an industry-standard PLCC6 package, making it suitable for automated pick-and-place assembly. This LED offers high luminous intensity of 4000mcd and a wide 140° viewing angle, with a diffused lens for even light distribution.
With a low profile and miniature size, the SMP6-UWDC is ideal for space-constrained designs. It operates with a typical forward current of 60mA and a forward voltage of 3.3V. The LED is housed in a 6-SMD, J-Lead package and is designed for surface mounting.
Key electrical characteristics include a maximum power dissipation of 100mW and a continuous forward current of 30mA. The operating temperature range is -30°C to 85°C, and it is equipped with a protective Zener diode. The LED is packaged in standard tape and reels for efficient manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The forward voltage for the Bivar SMP6-UWDC LED is typically 3.3V, with a minimum of 3.0V and a maximum of 3.6V at 60mA.
The luminous intensity of the SMP6-UWDC LED is typically 4000mcd, with a minimum of 3000mcd.
The Bivar SMP6-UWDC LED has a typical viewing angle of 140°.
The Bivar SMP6-UWDC LED is offered in a 6-SMD, J-Lead package, also referred to as a 6-PLCC package.
The operating temperature range for this LED is -30°C to 85°C.
