| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Continuous Forward Current | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature Range | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

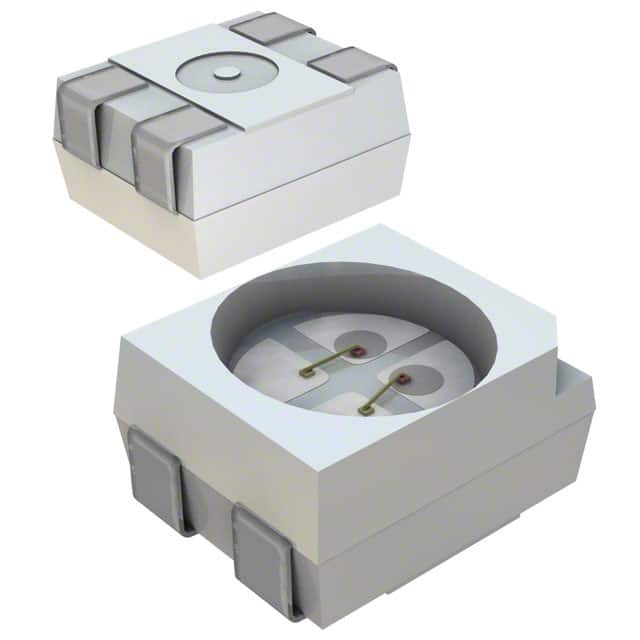

The Bivar Inc. SMP4-SBC-RY is a bi-color LED designed for indication applications. It utilizes two super bright chips, one red and one yellow, housed in an industry-standard PLCC4 footprint. This low-profile package is suitable for surface mount assembly.
This LED provides high luminous intensity, rated at 180mcd for both red and yellow colors, with a dominant wavelength of 631nm for red and 591nm for yellow. It features a wide 120° viewing angle, making it suitable for applications requiring broad light dispersion. The typical forward voltage for both colors is 1.9V at a recommended forward current of 20mA.
The SMP4-SBC-RY operates within a temperature range of -40°C to +85°C and has a maximum power dissipation of 72mW. Its robust package is designed for harsh working environments and can be used in LED arrays for enhanced illumination. The component is packaged in standard tape and reels for automated pick-and-place assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bivar SMP4-SBC-RY LED emits both Red and Yellow light.
The SMP4-SBC-RY LED is supplied in a 4-PLCC package.
The typical forward voltage for both Red and Yellow colors is 1.9V at 20mA.
The SMP4-SBC-RY LED has a typical viewing angle of 120°.
The operating temperature range for the SMP4-SBC-RY LED is -40°C to +85°C.
