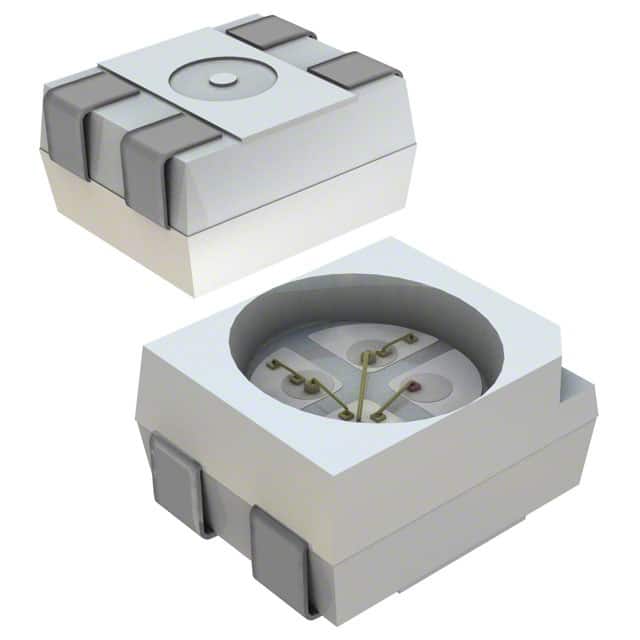

SMP4-RGY The Bivar Inc. SMP4-RGY is a tri-color LED with red, green, and yellow emitters in a single 4-PLCC SMD package. It offers a wide 120° viewing angle.
Mfr Part #:

SMP4-RGY

Available from 1 distributors
Mfr Name: Bivar Inc.
Bivar Inc.
The Bivar Inc. SMP4-RGY is a tri-color LED with red, green, and yellow emitters in a single 4-PLCC SMD package. It offers a wide 120° viewing angle.
✓ Total Stock: 94 pcs
$ Price Range: $0.06

SMP4-RGY Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
94 pcs
On Request
94 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMP4-RGY Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Continuous Forward Current
Current
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature Range
Peak Forward Current
Power Dissipation
Reverse Voltage
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SMP4-RGY Description

Short technical summary and product information.

The Bivar Inc. SMP4-RGY is a tri-color LED designed for indication and illumination applications. It features three chips (Red, Green, Yellow) within a single, low-profile PLCC4 SMD package, offering flexibility in color combinations.



This LED boasts a wide 120° viewing angle and a clear, water clear lens for high luminous intensity. Typical luminous intensity ratings are 40mcd for Green, 36mcd for Red, and 16mcd for Yellow, with a typical forward current of 20mA for each color. The forward voltage varies slightly by color, ranging from 1.85V to 1.9V.



With a compact size of 3.20mm L x 2.80mm W and a height of 1.85mm, the SMP4-RGY is suitable for space-constrained designs. Its robust package and low power consumption make it ideal for battery-powered equipment and harsh working environments. The LED is supplied in standard tape and reels for automated pick-and-place assembly.

SMP4-RGY Quick Information

Product Type: LED
Canonical Name: Bivar Inc. SMP4-RGY Tri-Color LED
Subcategory: Tri-Color LED

SMP4-RGY Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMP4-RGY Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMP4-RGY Features

  • Tri-color LED in one package.
  • Industry standard PLCC4 footprint.
  • Wide 120 degree viewing angle.
  • High luminous intensity output.
  • Suitable for automated assembly.

SMP4-RGY Applications

  • Ideal for general indication.
  • Used for backlighting applications.
  • Suitable for small scale illumination.
  • Good for battery powered equipment.

SMP4-RGY FAQs

6 frequently asked questions generated from this part’s specifications.
What colors does the Bivar SMP4-RGY LED emit?

The Bivar SMP4-RGY LED emits Red, Green, and Yellow light.

What is the typical forward voltage for the Bivar SMP4-RGY LED?

The typical forward voltage is 1.85V for Red and 1.9V for Green and Yellow.

What is the typical luminous intensity for each color of the SMP4-RGY LED?

Typical luminous intensity is 36mcd for Red, 40mcd for Green, and 16mcd for Yellow.

What is the viewing angle of the Bivar SMP4-RGY LED?

The viewing angle is 120 degrees.

What is the package type for the Bivar SMP4-RGY LED?

The package type is 4-PLCC Surface Mount.

What is the operating temperature range for the Bivar SMP4-RGY LED?

The operating temperature range is -40°C to +85°C.
