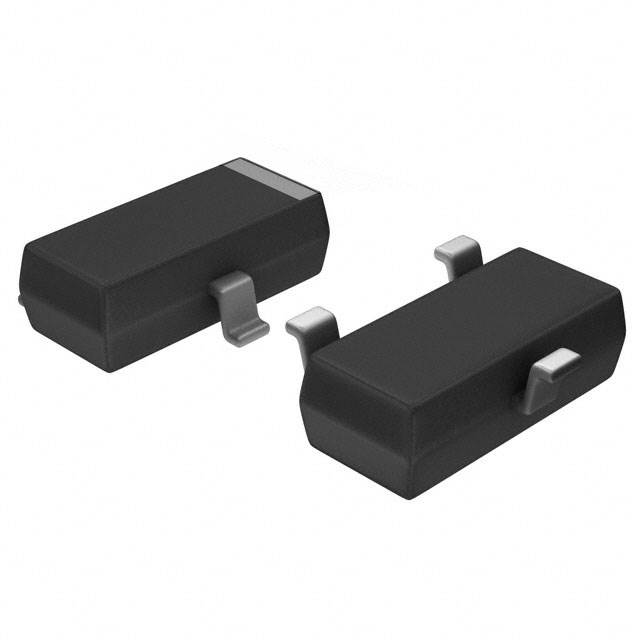

The SMP1330-005LF is a gold-doped, thin base limiter diode from Skyworks Solutions' SMP1330 series, designed for use as passive receiver protectors in wireless and other RF systems up to 4 GHz. It provides low-distortion, low-loss performance with good limiter action. Key electrical specifications include a maximum reverse voltage of 20V, forward current of 100mA, and power dissipation of 250mW. The diode exhibits a capacitance of 1pF at 0V and 1MHz, and a series resistance of 1.5 Ohm at 10mA and 100MHz. It is rated for up to 1W CW incident power and 100W peak incident power (1% duty factor, 1μs pulse). The operating temperature range is -65°C to 150°C.
The SMP1330-005LF is housed in a surface-mount SOT-23-3 package (also known as TO-236-3 and SC-59). It is rated Moisture Sensitivity Level 1 (MSL1) at 260°C per JEDEC J-STD-020, suitable for lead-free soldering. The device is RoHS3 compliant (unverified) and REACH unaffected. Typical applications include WLAN, WiMAX, cellular infrastructure, RFID readers, and test instruments. The diode is configured as a standard pair series connection, making it suitable for RF limiter circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.76 | $7.76 |
| 10+ | $6.00 | $6.00 |
| 25+ | $5.56 | $5.56 |
| 100+ | $5.07 | $5.07 |
| 250+ | $4.99 | $4.99 |
| 3,000+ | $4.45 | $4.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 20V.
100mA.
250mW.
Surface-mount SOT-23-3 (also TO-236-3, SC-59).
1pF at 0V, 1MHz.
-65°C to 150°C.
WLAN, WiMAX, cellular infrastructure, RFID readers, and test instruments.
