| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
388 pcs
|
388 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Diode Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Resistance @ If, F | |
| Supplier Device Package |

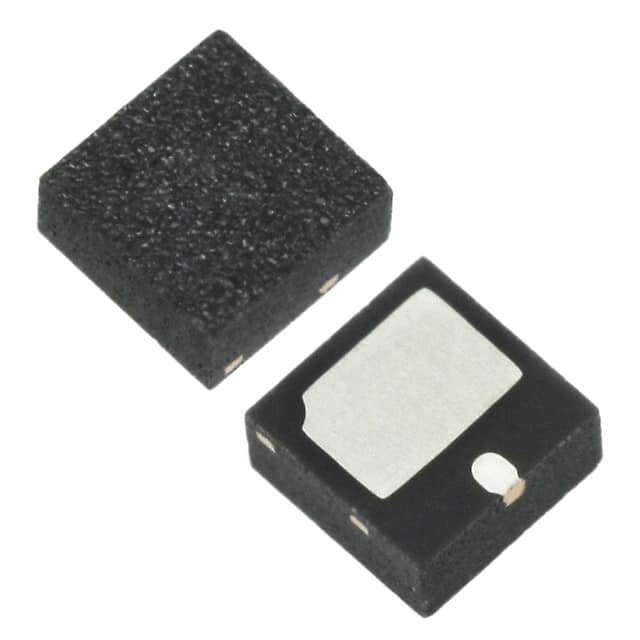

The Skyworks Solutions SMP1325-087LF is a single PIN RF diode with a current rating of 200 mA and a maximum power dissipation of 2 W. It operates within a temperature range of -55°C to 175°C (TJ).
This diode features a capacitance of 0.6pF at 20V and 1MHz, and a resistance of 550mOhm at 100mA and 100MHz. It is housed in a 2-QFN (2x2) package with an exposed pad, also described as a 2-VSFN package.
The SMP1325-087LF is suitable for RF applications requiring precise control and high-frequency performance. Its specifications make it a component for signal modulation, switching, and attenuation circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SMP1325-087LF is a single PIN RF diode.
The maximum current rating for the SMP1325-087LF is 200 mA.
The maximum power dissipation for the SMP1325-087LF is 2 W.
The capacitance of the SMP1325-087LF is 0.6pF at 20V and 1MHz.
The resistance of the SMP1325-087LF is 550mOhm at 100mA and 100MHz.
The operating temperature range for the SMP1325-087LF is -55°C to 175°C (TJ).
The SMP1325-087LF is supplied in a 2-QFN (2x2) package, also referred to as 2-VSFN Exposed Pad.
