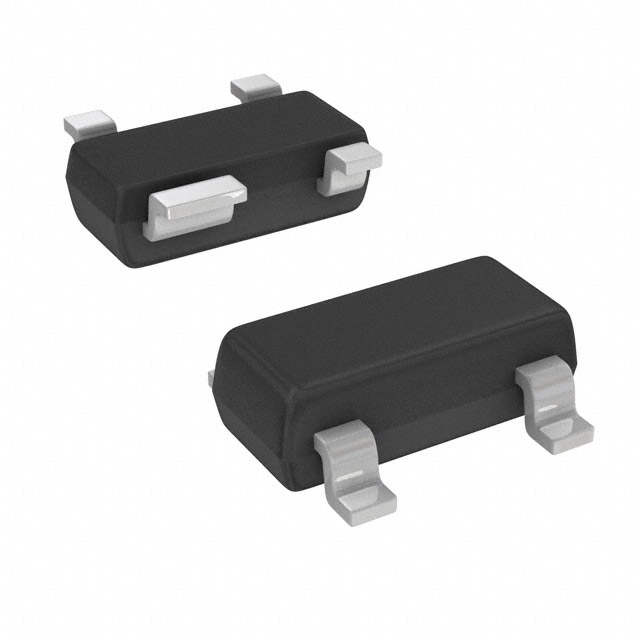

SMP1322-017LF The SMP1322-017LF is a single PIN diode from Skyworks Solutions designed for RF switching and attenuator applications. It features a maximum reverse voltage of 50V, typical capacitance of 1.15pF, and low forward resistance of 500mOhm.
Mfr Part #:

SMP1322-017LF

Available from 2 distributors
Mfr Name: Skyworks Solutions
Skyworks Solutions
The SMP1322-017LF is a single PIN diode from Skyworks Solutions designed for RF switching and attenuator applications. It features a maximum reverse voltage of 50V, typical capacitance of 1.15pF, and low forward resistance of 500mOhm.
✓ Total Stock: 2,253 pcs

SMP1322-017LF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,243 pcs
On Request
2243 pcs On Request 1 On Request On Request N/A On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMP1322-017LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Diode Type
Mounting Type
Operating Temperature
Power Dissipation (Max)
Resistance @ If, F
Supplier Device Package
Termination Style
Voltage
View Similar Products (0)

SMP1322-017LF Description

Short technical summary and product information.

The SMP1322-017LF is a single PIN diode manufactured by Skyworks Solutions, optimized for RF switching and attenuator circuits. It is rated for a maximum reverse voltage of 50V and can dissipate up to 250mW of power. The diode exhibits a typical capacitance of 1.15pF at 30V reverse bias and 1MHz, and a typical forward resistance of 500mOhm at 10mA and 100MHz, making it suitable for high-frequency signal control.



This device is housed in a surface-mount SOT-143 package (also known as TO-253-4 or TO-253AA), which is compact and suitable for automated assembly. The operating temperature range spans from -65°C to 150°C, allowing use in demanding environments. The SMP1322-017LF is RoHS3 compliant and has an MSL rating of 1, indicating no moisture sensitivity restrictions.

SMP1322-017LF Quick Information

Product Type: RF PIN Diode
Canonical Name: SMP1322-017LF RF PIN Diode
Subcategory: RF Diodes

SMP1322-017LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
REACH Status: REACH Unaffected

SMP1322-017LF Features

  • Single PIN diode for RF switching.
  • Maximum reverse voltage of 50V.
  • Power dissipation up to 250mW.
  • Low capacitance of 1.15pF typical.
  • Low forward resistance of 500mOhm typical.

SMP1322-017LF Applications

  • RF switch and attenuator circuits.
  • High-frequency signal routing.
  • Wireless communication systems.
  • Test and measurement equipment.

SMP1322-017LF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the SMP1322-017LF?

The maximum reverse voltage is 50V.

What is the power dissipation rating of the SMP1322-017LF?

The maximum power dissipation is 250mW.

What is the typical capacitance of the SMP1322-017LF?

The typical capacitance is 1.15pF at 30V reverse bias and 1MHz.

What is the typical forward resistance of the SMP1322-017LF?

The typical forward resistance is 500mOhm at 10mA and 100MHz.

What package does the SMP1322-017LF come in?

It comes in a surface-mount SOT-143 package (TO-253-4, TO-253AA).

What is the operating temperature range of the SMP1322-017LF?

The operating temperature range is -65°C to 150°C.
