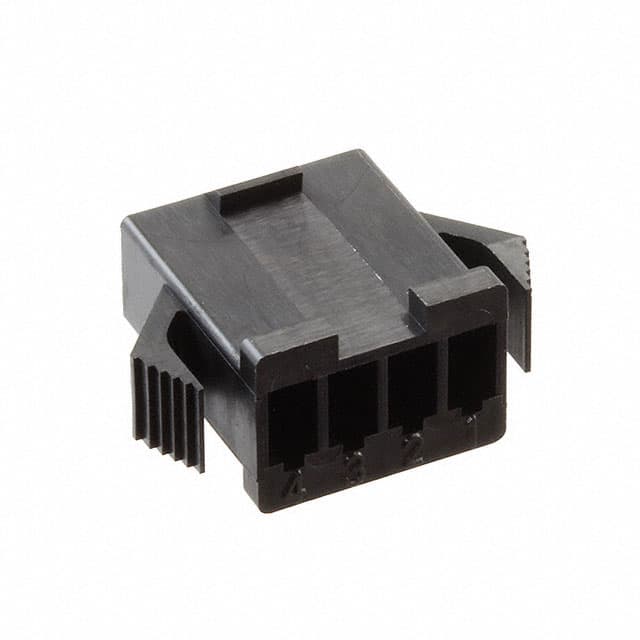

The SMP-04V-BC is a 4-position plug housing from JST's SM series, designed for 2.5mm pitch wire-to-wire connections. It is a disconnectable crimp style connector suitable for high-density, small current applications. The housing features a locking ramp for secure mating and panel mount snap-in installation.
Key electrical specifications include a current rating of 3A AC/DC maximum, voltage rating of 250V AC/DC maximum, contact resistance of 10 mΩ initial, insulation resistance of 500 MΩ minimum, and withstanding voltage of 1500 VAC for one minute. Operating temperature ranges from -25°C to 85°C.
The housing accepts wires from 28 AWG to 22 AWG (0.08 mm² to 0.33 mm²) and can be mounted on panels with thickness from 0.5 mm to 2.0 mm. The contacts are female sockets terminated via crimp. The product is RoHS2 compliant.
Typical applications include wire-to-wire interconnections in consumer electronics, industrial equipment, and other high-density wiring environments where reliable small signal connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
| 10+ | $0.12 | $0.12 |
| 25+ | $0.12 | $0.12 |
| 50+ | $0.11 | $0.11 |
| 100+ | $0.10 | $0.10 |
| 250+ | $0.10 | $0.10 |
| 500+ | $0.09 | $0.09 |
| 1,000+ | $0.09 | $0.09 |
| 3,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.50mm.
3A maximum.
250V maximum.
Panel mount, snap-in.
28 AWG to 22 AWG.
-25°C to 85°C.
