| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,509 pcs
|
2509 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Fastening Type | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Panel Thickness | |
| Pitch | |
| Voltage Rating | |
| Withstanding Voltage |

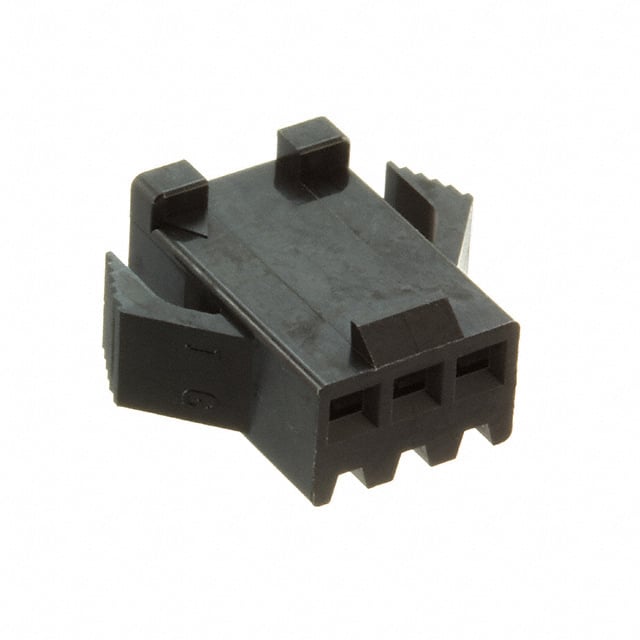

The SMP-03V-BC is a 3-position plug housing from the JST SM series of disconnectable crimp style wire-to-wire connectors. It features a 2.50mm pitch and a single row configuration with female socket contacts. The housing is designed for panel mount, snap-in installation and includes a locking ramp fastening mechanism for secure mating.
Electrical ratings include a maximum current of 3A AC/DC and maximum voltage of 250V AC/DC. Operating temperature range is -25°C to +85°C. The connector accepts wire gauges from AWG #28 to #22 (0.08mm² to 0.33mm²) and is compatible with panel thicknesses from 0.5mm to 2.0mm. Contact material is phosphor bronze with tin-plating (reflow treatment).
The housing is black in color and utilizes crimp termination. The SM series is designed for reliable performance in high-density, small current applications. Contact resistance is 10mΩ maximum initially and 20mΩ maximum after environmental tests. Insulation resistance is 500MΩ minimum and withstanding voltage is 1500VAC for one minute.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.08 | $0.08 |
| 25+ | $0.07 | $0.07 |
| 50+ | $0.07 | $0.07 |
| 100+ | $0.07 | $0.07 |
| 250+ | $0.06 | $0.06 |
| 500+ | $0.06 | $0.06 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions in a single row.
2.50mm.
3A AC/DC maximum.
250V AC/DC maximum.
Panel mount, snap-in.
AWG #28 to #22 (0.08mm² to 0.33mm²).
-25°C to +85°C.
