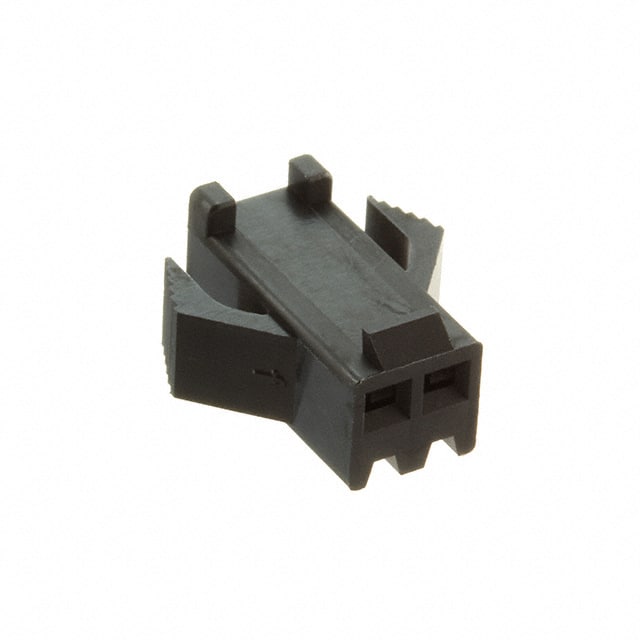

The JST Manufacturing SMP-02V-BC is a 2-position plug housing from the SM series of disconnectable crimp-style wire-to-wire connectors. It features a 2.50mm pitch and is designed for reliable performance in high-density, small current applications.
The housing is panel mount with snap-in installation and uses a locking ramp fastening mechanism for secure mating. It accepts female socket contacts terminated to AWG 28 to 22 wire (0.08 to 0.33 mm²). The connector is rated for 3A AC/DC maximum current and 250V AC/DC maximum voltage, with an operating temperature range of -25°C to 85°C.
Key electrical characteristics include a maximum initial contact resistance of 10 mΩ, minimum insulation resistance of 500 MΩ, and a withstanding voltage of 1500 VAC per minute. The housing is black and accommodates panel thicknesses from 0.5 to 2.0 mm.
