| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | |
| Halogen Free | |
| Mounting Type | |
| Power | |
| Resistor | |
| Supplier Device Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |
The SMMUN2214LT1G from On Semiconductor is a digital transistor (BRT) that integrates an NPN transistor with a monolithic bias resistor network. This design simplifies circuit construction by replacing discrete components and reducing board space. It operates with a maximum collector-emitter voltage of 50V and a continuous collector current of 100mA.
The device features integrated resistors with R1 at 10 kOhms and R2 at 47 kOhms. It has a maximum power dissipation of 246 mW and is supplied in a surface-mount SOT-23-3 (TO-236) package. The transistor type is NPN - Pre-Biased, with a minimum DC current gain (hFE) of 80 at 5mA collector current and 10V Vce. The saturation voltage (Vce Sat) is a maximum of 250mV at 300µA base current and 10mA collector current.
This series is designed to replace single devices and their external bias networks, offering reduced component count and system cost. The SMMUN2214LT1G is Pb-free and Halogen-free, compliant with RoHS standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.

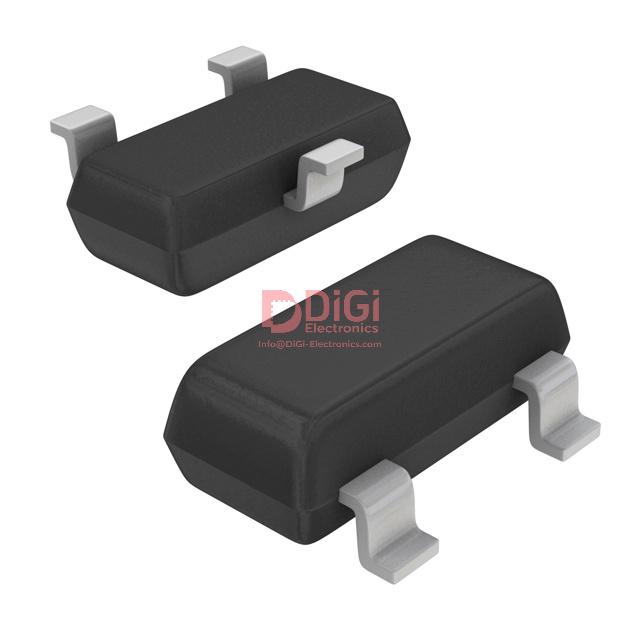

SOT-23-3 (TO-236) surface mount package.
50 Vdc.
100 mAdc.
Base resistor R1 is 10 kΩ, emitter-base resistor R2 is 47 kΩ.
80 at 5mA, 10V.
250mV at 300µA base current, 10mA collector current.
246 mW at 25°C ambient.
