| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

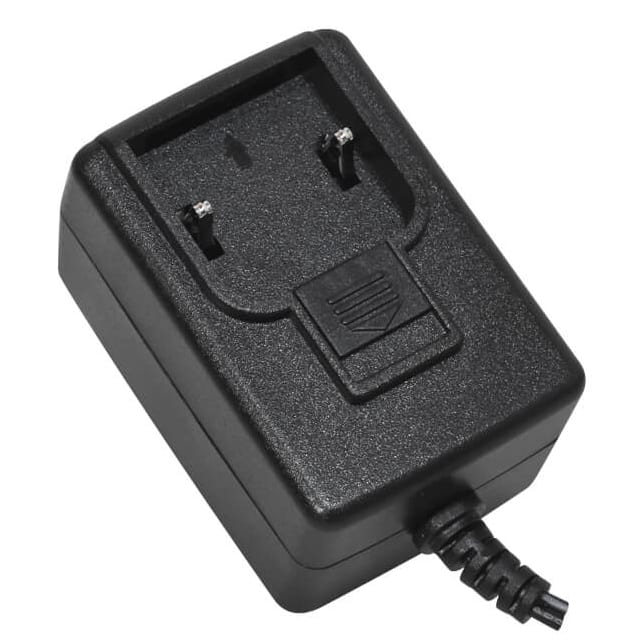

The CUI Inc. SMM6-12-K-P5 is a versatile AC-DC power supply designed for various applications, including medical and ITE. It delivers a continuous 6W of power with a single regulated 12V output.
This power supply features a universal input voltage range of 90-264 Vac and meets DoE Level VI efficiency requirements, ensuring energy savings. It is designed in a compact, wall-mount form factor with interchangeable AC blades for global use. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center.
Safety and compliance are key features, with approvals including UL/cUL 60601-1, TUV, CB, PSE, FCC, and CE. It offers essential protections such as over-voltage and short-circuit protection with auto-recovery. The operating temperature range is 0°C to 40°C.
90-264 Vac.
12 Vdc at up to 0.5 A.
0°C to 40°C.
Wall mount (Class II) with a multi-blade input connector sold separately and a 2.1 mm I.D. x 5.5 mm O.D. x 9.5 mm barrel plug output.
Over voltage protection at 150% and continuous short circuit protection with auto recovery.
4000 Vac minimum.
Level VI.
