| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

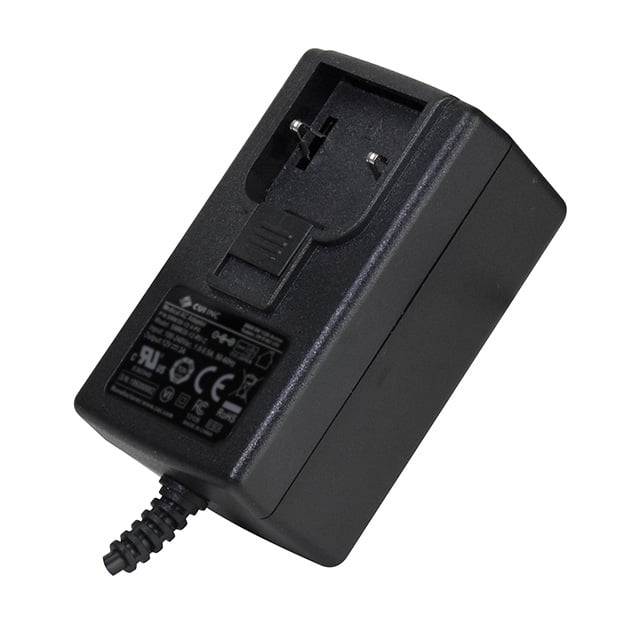

The CUI Inc. SMM30-12-K-P6 is a versatile AC-DC power adapter designed for wall mounting. It provides a stable 12V DC output with a maximum current of 3A, delivering up to 36W of continuous power.
This adapter features a universal input voltage range of 90-264 Vac and complies with DoE Level VI efficiency standards, ensuring energy savings. It includes essential protections such as over-voltage and short-circuit protection with auto-recovery.
The SMM30 series is suitable for various applications requiring reliable power conversion. The unit has a compact form factor and utilizes a positive center barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). It also features interchangeable blades, with this specific model (K) including no blades, sold separately.
Safety approvals include UL/cUL 60601-1, TUV, CB, CE, FCC, PSE, and UKCA, making it suitable for medical and other regulated applications. The operating temperature range is 0°C to 40°C.
The CUI SMM30-12-K-P6 provides a 12V DC output at a maximum current of 3A.
The SMM30-12-K-P6 adapter has a maximum continuous power output of 36W.
The CUI SMM30-12-K-P6 supports a universal input voltage range of 90 to 264 Vac.
Yes, the SMM30-12-K-P6 meets DoE Level VI efficiency standards.
The SMM30-12-K-P6 uses a barrel plug output connector with a 2.5mm I.D. and 5.5mm O.D., and a length of 9.5mm.
The CUI SMM30-12-K-P6 has safety approvals including UL/cUL 60601-1, TUV, CB, CE, FCC, PSE, and UKCA.
The operating temperature range for this power supply is 0°C to 40°C.
