| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

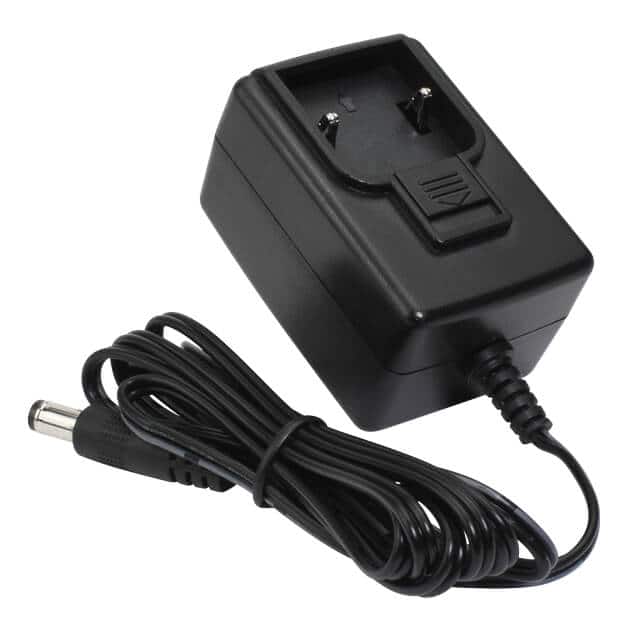

This CUI Inc. SMM12-5-KB-P5 is an AC/DC wall mount adapter with a power rating of 12W. It delivers a stable 5V output with a maximum current of 2.4A. The adapter is designed for international region utilization and complies with Efficiency Level VI standards, ensuring energy efficiency.
Featuring a compact wall mount (Class II) form factor, the SMM12-5-KB-P5 is suitable for various applications, including ITE (Commercial) and Medical. It utilizes a multi-blade input connector, sold separately, and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The operating temperature range is from 0°C to 40°C.
Compliance is assured with CE, cULus, FCC, PSE, and TUV approvals. The adapter adheres to standard numbers 60601-1 and 60950-1. It has a low no-load power consumption of 100mW (Max) and a cord length of 59 inches (1.50m).
The output voltage is 5V.
The maximum output current is 2.4A.
The power rating is 12W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 40°C.
The dimensions are 57.0mm x 39.0mm x 34.0mm.
The efficiency level is Level VI.
