| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,920 pcs
|
2920 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

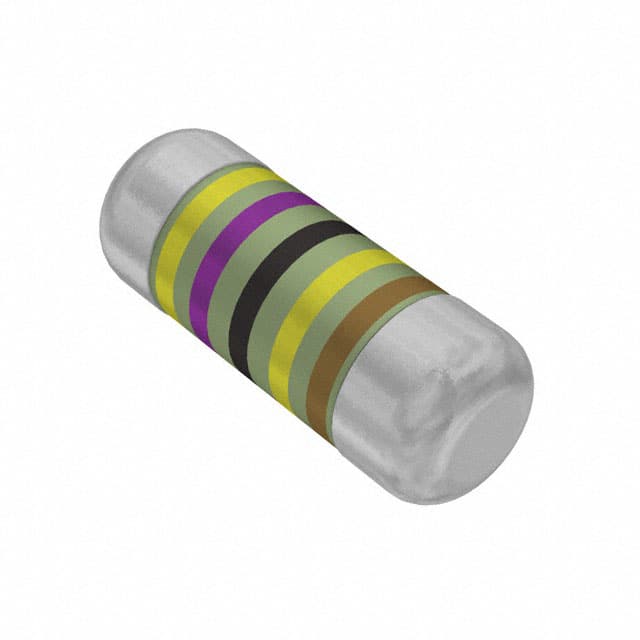

The Vishay Dale SMM02070C4709FBP00 is a surface-mount MELF resistor designed for professional electronics applications requiring high reliability and stability. It features advanced metal film technology and intrinsic sulfur resistance, making it suitable for demanding environments.
This resistor offers a resistance value of 47 Ohms with a tight tolerance of ±1%. It is rated for a power dissipation of 1.0W and can withstand an operating voltage of up to 350V. The operating temperature range is -55°C to 155°C, with a maximum permissible film temperature of 155°C.
The SMM0207 series is AEC-Q200 qualified, indicating its suitability for automotive applications. It also boasts best-in-class pulse load capability and features like anti-sulfur properties and pulse withstanding. The resistor comes in a MELF, 0207 package.
Key specifications include a resistance range from 0.16 Ohms to 10 MOhms and temperature coefficients as tight as ±15 ppm/K. The failure rate is observed to be less than or equal to 0.1 x 10⁻⁹/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 47 Ohms.
The resistance tolerance is ±1%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
It is a MELF, 0207 package.
Yes, the SMM0207 series is AEC-Q200 qualified.
