| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

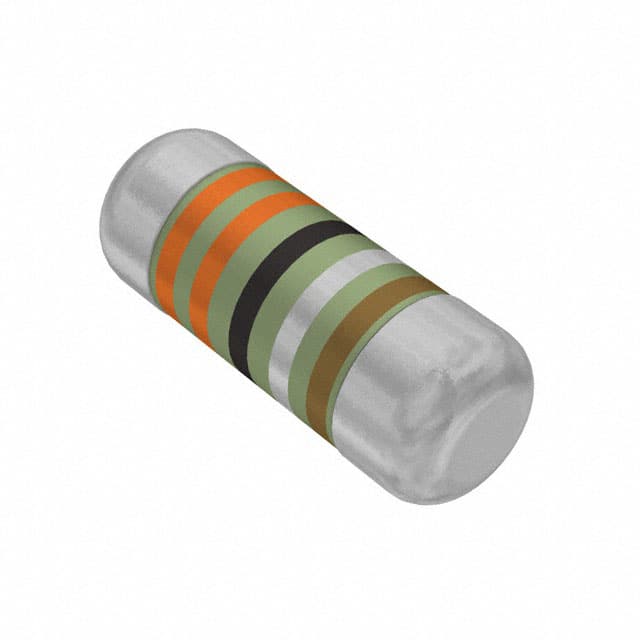

The Vishay Dale SMM02070C3308FBP00 is a high-reliability thin film MELF resistor designed for demanding applications in automotive, industrial, and medical equipment. It features a resistance value of 3.3 Ohms with a tight tolerance of ±1% and a power rating of 1W at 70°C.
This resistor is built using advanced metal film technology and offers excellent pulse load capability and intrinsic sulfur resistance. The operating temperature range is -55°C to 155°C, with a maximum permissible film temperature of 155°C. The MELF package, size 0207, measures 0.087" diameter by 0.228" length (2.20mm x 5.80mm).
Key specifications include a maximum operating voltage of 350V AC RMS/DC and a temperature coefficient of ±50ppm/°C. It is AEC-Q200 qualified, reflecting its suitability for automotive environments. The failure rate is very low, observed at less than 0.1 x 10⁻⁹ failures per hour.
Applications for this resistor include automotive systems, telecommunications, industrial controls, and medical devices where reliability and stability are critical. Its robust construction and performance characteristics make it a suitable choice for high-power applications requiring precision.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3.3 Ohms.
The resistance tolerance is ±1%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
The package type is MELF, size 0207.
Yes, this resistor is AEC-Q200 qualified.
