| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,435 pcs
|
6435 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

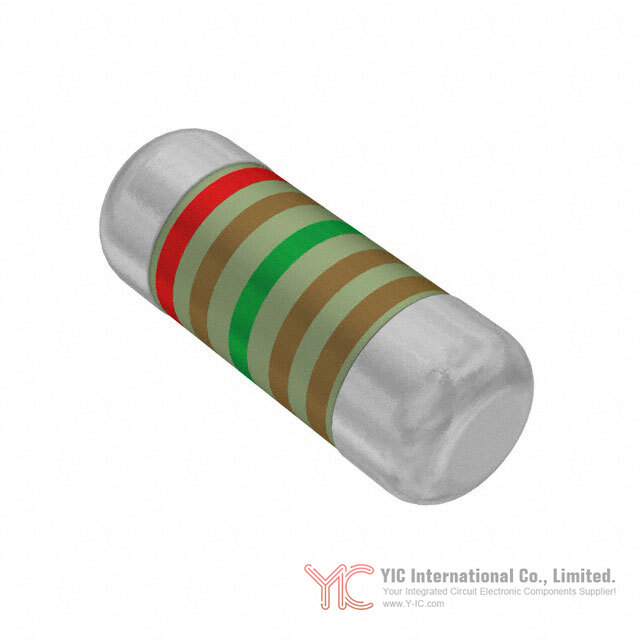

This SMM0207 series thin film MELF resistor from Vishay Dale is designed for professional electronics applications requiring high reliability and stability. It features a resistance of 2.15 kΩ with a tight tolerance of ±1% and a power rating of 1W.
The resistor operates within a temperature range of -55°C to 155°C, with a permissible film temperature of up to 155°C. Its advanced metal film technology and MELF package provide excellent pulse load capability and intrinsic sulfur resistance.
Key specifications include a DIN size of 0207 and a metric size code of RC6123M. The component is AEC-Q200 qualified, making it suitable for automotive applications. It has 2 terminations and is constructed using thin film technology.
The MELF package is suitable for surface mounting. The resistor's dimensions are 0.087" diameter by 0.228" length (2.20mm x 5.80mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.15 kΩ.
The tolerance is ±1%.
The power rating is 1W.
The temperature coefficient is ±50 ppm/°C.
The operating temperature range is -55°C to 155°C.
The package type is MELF, 0207.
Yes, the resistor is AEC-Q200 qualified.
