| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
973 pcs
|
973 pcs | On Request | 1 | On Request | On Request | 1243+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

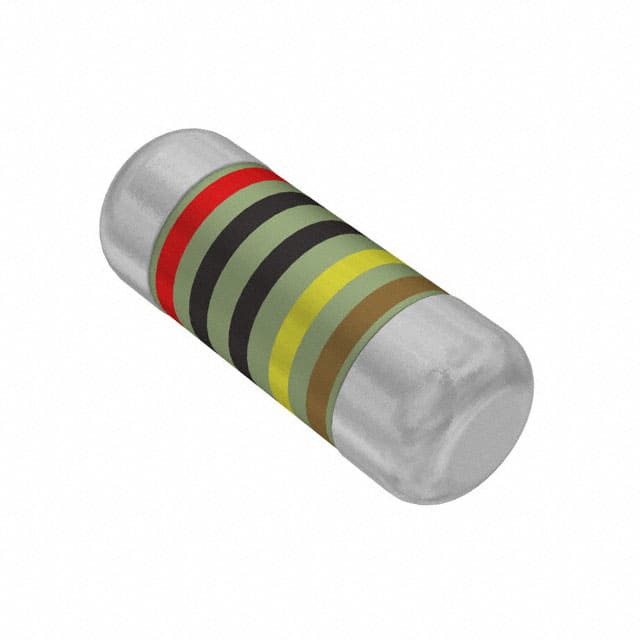

The Vishay Dale SMM02070C2009FBP00 is a high-reliability Thin Film MELF resistor designed for professional electronics applications requiring stability and high performance. It features a resistance value of 20 Ohms with a tight tolerance of ±1% and a power rating of 1W at 70°C.
This resistor operates within a wide temperature range of -55°C to 155°C and has a temperature coefficient of ±50ppm/°C. Its advanced metal film technology and MELF package provide excellent pulse load capability and intrinsic sulfur resistance, making it suitable for demanding environments.
The MELF, 0207 package measures 0.087" Dia x 0.228" L (2.20mm x 5.80mm). The component is AEC-Q200 qualified, indicating its suitability for automotive applications. It also features anti-sulfur properties and pulse withstanding capabilities.
Key specifications include an operating voltage of 350V, a permissible film temperature of 155°C, and an insulation voltage of 500V for 1 minute. The failure rate is observed to be less than or equal to 0.1 x 10⁻⁹/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the SMM02070C2009FBP00 resistor is 20 Ohms.
The tolerance of the SMM02070C2009FBP00 resistor is ±1%.
The power rating of the SMM02070C2009FBP00 resistor is 1W at 70°C.
The operating temperature range for the SMM02070C2009FBP00 resistor is -55°C to 155°C.
The temperature coefficient of the SMM02070C2009FBP00 resistor is ±50ppm/°C.
Yes, the SMM02070C2009FBP00 resistor is AEC-Q200 qualified.
The package type for the SMM02070C2009FBP00 resistor is MELF, 0207.
