| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

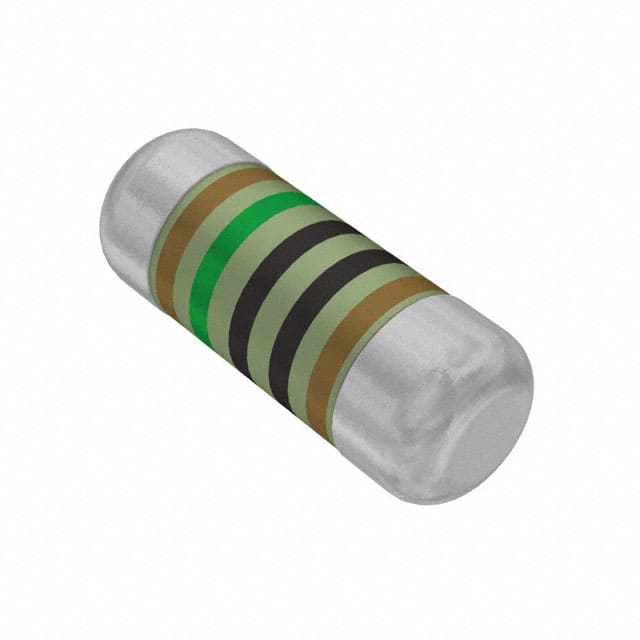

The Vishay Dale SMM02070C1500FBP00 is a thin film MELF resistor designed for professional electronics requiring high reliability and stability. It features a resistance of 150 Ohms with a tight tolerance of ±1% and a power rating of 1W.
This resistor is suitable for a wide operating temperature range of -55°C to 155°C, with a permissible film temperature of up to 155°C. Its advanced metal film technology and AEC-Q200 qualification make it ideal for demanding applications.
The MELF package, sized at 0.087" Dia x 0.228" L (2.20mm x 5.80mm), offers robust performance. The component has 2 terminations and is constructed using thin film technology. It also boasts intrinsic sulfur resistance and best-in-class pulse load capability.
Typical applications include automotive, telecommunication, industrial, and medical equipment where reliability and stability are paramount. The component is rated for up to 350V AC RMS/DC and has a failure rate of less than 0.1 x 10⁻⁹/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 150 Ohms.
The resistance tolerance is ±1%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
It is a MELF, 0207 package.
Yes, the resistor features AEC-Q200 qualification.
