| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
711 pcs
|
711 pcs | On Request | 1 | On Request | On Request | 1544+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

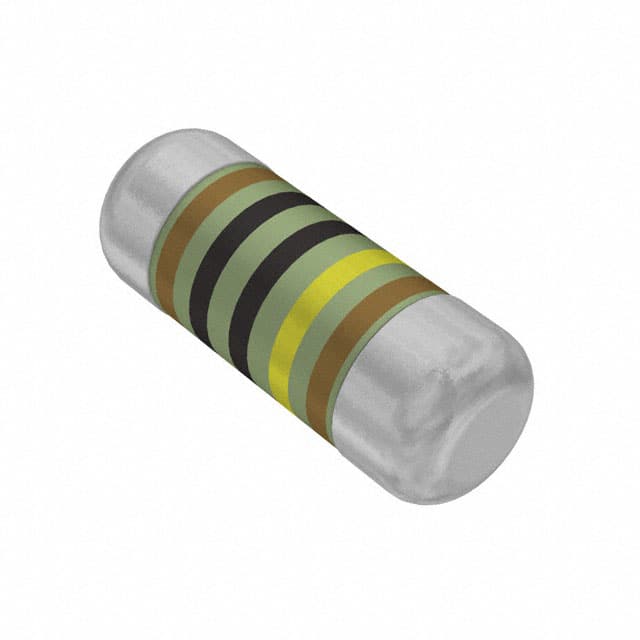

The Vishay Dale SMM02070C1009FBP00 is a high-reliability thin film MELF resistor designed for demanding applications in automotive, industrial, and medical equipment. It features a resistance of 10 Ohms with a tight tolerance of ±1% and a power rating of 1W.
This resistor utilizes advanced metal film technology and offers excellent pulse load capability and intrinsic sulfur resistance. The operating temperature range is -55°C to 155°C, with a maximum film temperature of 155°C. The component is AEC-Q200 qualified, ensuring suitability for automotive environments.
The MELF package, size 0207, measures 0.087" Dia x 0.228" L (2.20mm x 5.80mm). It has 2 terminations and is constructed from thin film material. The temperature coefficient is ±50ppm/°C, with other available coefficients including ±15ppm/K, ±25ppm/K, ±50ppm/K, and ±100ppm/K.
This component is suitable for applications requiring stability and reliability at higher power ratings and operating voltages, up to 350V AC RMS/DC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the SMM02070C1009FBP00 resistor is 10 Ohms.
The resistance tolerance for the SMM02070C1009FBP00 is ±1%.
The power rating for this resistor is 1W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
Yes, the SMM02070C1009FBP00 is AEC-Q200 qualified.
