| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

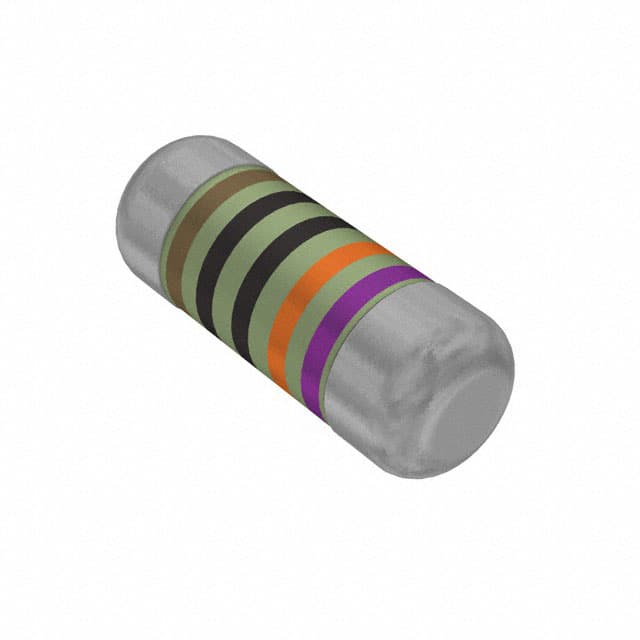

The Vishay Dale SMM02040D1003BB300 is a thin film Mini-MELF resistor designed for high reliability applications. It offers a resistance value of 100 kΩ with a tight tolerance of ±0.1% and a temperature coefficient of ±25ppm/°C.
This resistor is rated for 0.25W (1/4W) of power dissipation and can operate within a temperature range of -55°C to 155°C. It features advanced metal film technology, intrinsic sulfur resistance, and is AEC-Q200 qualified, making it suitable for demanding environments.
The Mini-MELF package, size 0204, measures 0.055" Dia x 0.142" L (1.40mm x 3.60mm). Its robust construction and features like pulse withstanding capability and anti-sulfur properties ensure stability and longevity in automotive, telecommunication, industrial, and medical equipment applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 kΩ.
The tolerance is ±0.1%.
The power rating is 0.25W, or 1/4W.
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 125°C.
Yes, the SMM02040D1003BB300 resistor is AEC-Q200 qualified.
The package type is MELF, 0204, also referred to as Mini MELF.
