| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 0010+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

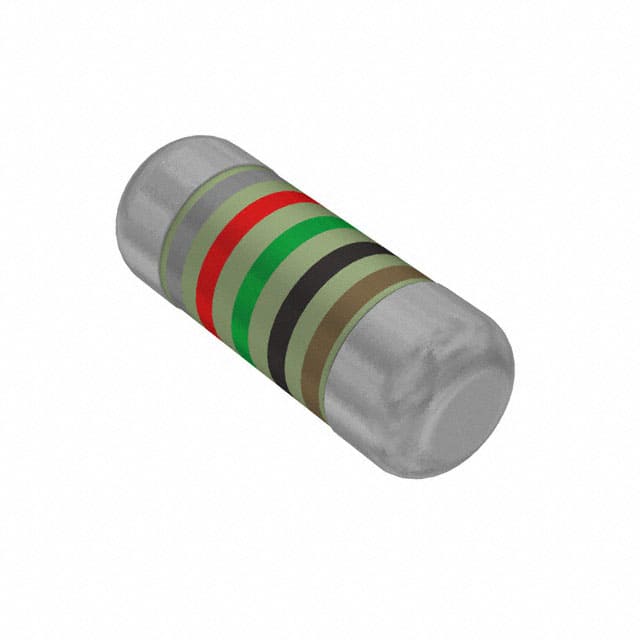

The Vishay Dale SMM02040C8250FB300 is a Thin Film Mini-MELF resistor designed for applications requiring high reliability and stability. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for automotive, industrial, and medical equipment.
This resistor offers a resistance value of 825 Ohms with a tight tolerance of ±1%. It has a power rating of 0.25W (1/4W) and a temperature coefficient of ±50ppm/°C. The operating temperature range is -55°C to +125°C, with a maximum permissible film temperature of 155°C.
The SMM02040C8250FB300 has a DIN 0204 size and a metric size code of RC3715M. Its dimensions are 1.40mm x 3.60mm. The component is designed for PCB mounting and comes in a Mini MELF package. It also features intrinsic sulfur resistance and best-in-class pulse load capability.
Key specifications include a rated dissipation of 0.4W, a maximum operating voltage of 200V, and a permissible insulation voltage of 300V for 1 minute. The failure rate is observed to be less than or equal to 0.05 x 10⁻⁹/h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 825 Ohms.
The tolerance is ±1%.
The power rating is 0.25W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to +125°C.
Yes, the resistor is AEC-Q200 qualified.
The dimensions are 1.40mm x 3.60mm.
