| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
992 pcs
|
992 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

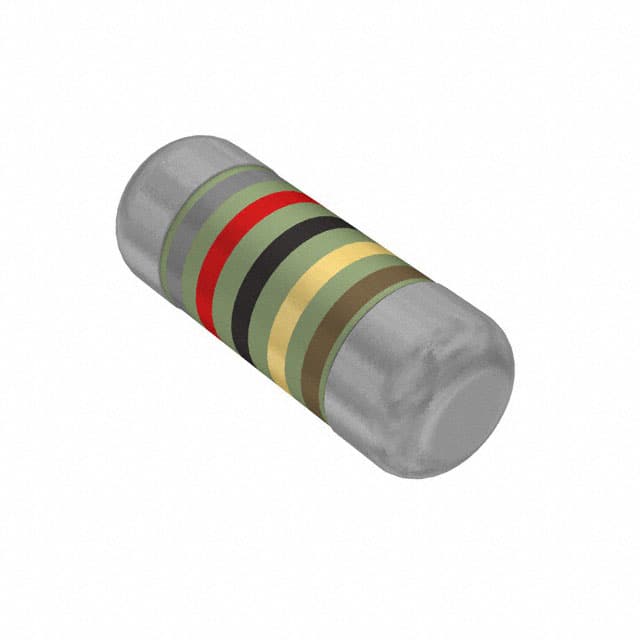

The Vishay Dale SMM02040C8209FB300 is a thin film Mini-MELF resistor designed for applications requiring high reliability and stability. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for automotive, industrial, and medical equipment.
This resistor offers a resistance value of 82 Ohms with a tight tolerance of ±1%. It has a power rating of 0.25W (1/4W) and a temperature coefficient of ±50ppm/°C. The operating temperature range is from -55°C to 155°C, with a maximum film temperature of 155°C. The component has 2 terminations and comes in a MELF 0204 package, measuring 0.055" diameter by 0.142" length.
Key features include intrinsic sulfur resistance and pulse withstanding capability. The datasheet specifies an operating voltage of 200V and a failure rate of less than or equal to 0.05 x 10⁻⁹/h. The DIN size is 0204 and the metric size code is RC3715M.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 82 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
It is a MELF 0204 package, also referred to as Mini MELF.
