| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,844 pcs
|
23844 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
23,828 pcs
|
23828 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

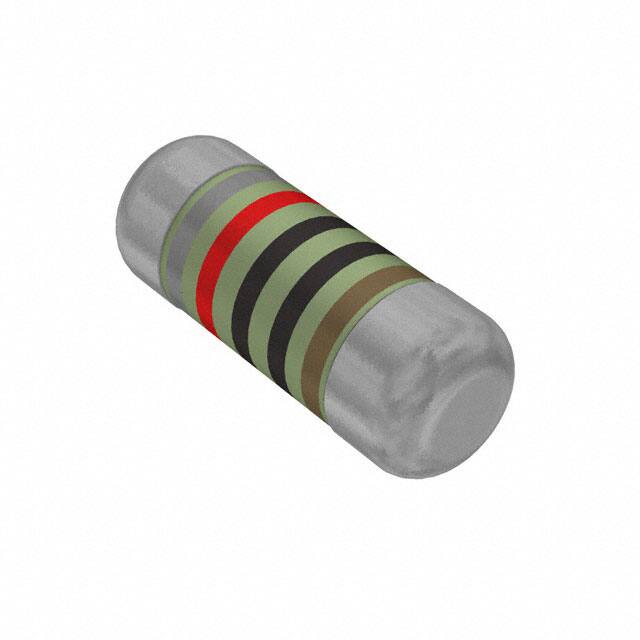

The Vishay Dale SMM02040C8200FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding applications.
This resistor offers a resistance value of 820 Ohms with a tight tolerance of ±1%. It has a power rating of 0.25W (1/4W) and a temperature coefficient of ±50ppm/°C. The operating temperature range is -55°C to 155°C, with a maximum permissible film temperature of 155°C.
The Mini-MELF package (0204 DIN size) has dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm). It has 2 terminations and is constructed using thin film technology. Additional features include intrinsic sulfur resistance and pulse withstanding capability.
Typical applications include automotive, telecommunication, industrial, and medical equipment where high reliability and stability are critical. The component also boasts a low failure rate of ≤ 0.05 x 10⁻⁹ /h.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 820 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 155°C.
It uses a MELF, 0204 package, specifically a Mini MELF.
Yes, this resistor is AEC-Q200 qualified.
