| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,233 pcs
|
2233 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

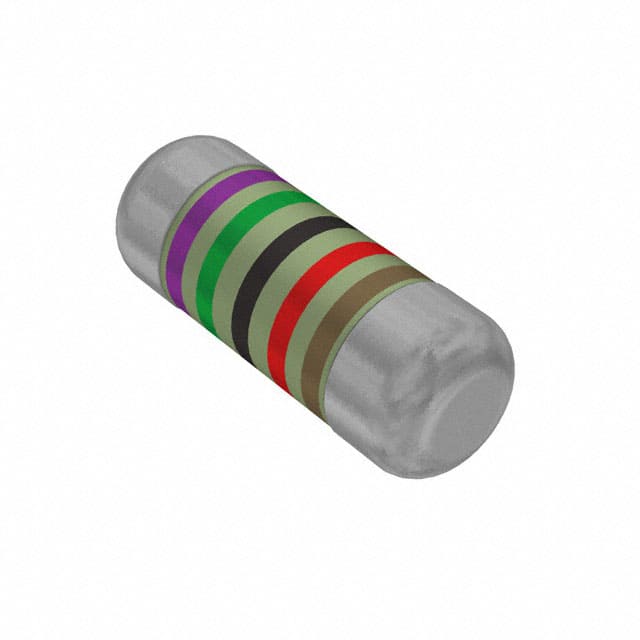

The Vishay Dale SMM02040C7502FB300 is a high-reliability thin film Mini-MELF resistor designed for demanding applications. It features a resistance value of 75 kΩ with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
This resistor operates across a wide temperature range of -55°C to 125°C, with a permissible film temperature of up to 155°C. Its advanced metal film technology and intrinsic sulfur resistance contribute to excellent stability and reliability in various environmental conditions. The component is AEC-Q200 qualified, making it suitable for automotive applications.
The Mini-MELF package, with dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm), is designed for surface mounting. It has two terminations and a thin film composition, offering good pulse load capability and stability.
Key specifications include an operating voltage of 200V, a temperature coefficient of ±50ppm/°C, and a low failure rate. The SMM0204 series is ideal for automotive, telecommunication, industrial, and medical equipment where reliability is paramount.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 75 kΩ.
The tolerance is ±1%.
The power rating is 0.25W, or 1/4W.
The operating temperature range is -55°C to 125°C.
The temperature coefficient is ±50ppm/°C.
It is a Mini MELF package, size 0204.
Yes, this resistor is AEC-Q200 qualified.
