Mfr Part #:

SMM02040C6801FB300

Mfr Name: Vishay

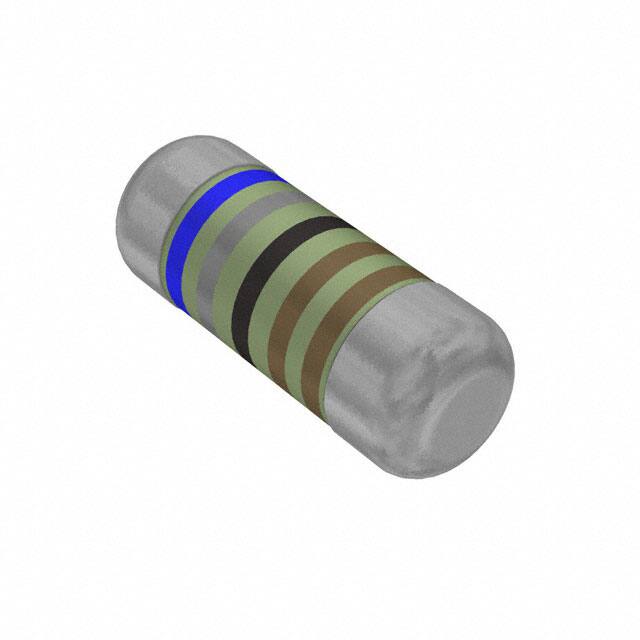

The Vishay Dale SMM02040C6801FB300 is a thin film Mini-MELF resistor with 6.8 kΩ resistance and ±1% tolerance. It is rated for 1/4W power and operates from -55°C to 125°C.

✓ Total Stock: 300 pcs

$ Price Range: $0.02

SMM02040C6801FB300 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	300 pcs On Request	300 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SMM02040C6801FB300 Description

Short technical summary and product information.

The Vishay Dale SMM02040C6801FB300 is a high-reliability thin film Mini-MELF resistor designed for demanding applications. It offers a resistance value of 6.8 kΩ with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).

This resistor features advanced metal film technology and is AEC-Q200 qualified, making it suitable for automotive, industrial, and medical equipment. The operating temperature range is -55°C to 125°C, with a permissible film temperature up to 155°C. The component has a temperature coefficient of ±50ppm/°C.

Packaged in a MELF 0204 case, the Mini MELF measures 0.055 inches in diameter and 0.142 inches in length. Its construction provides excellent stability in various environmental conditions and includes intrinsic sulfur resistance and pulse load capability.

Additional features include 2 terminations and a resistance range from 0.22 Ω to 10 MΩ. The datasheet specifies a rated dissipation of 0.4W and an operating temperature range of -55°C to 155°C, which differs from the existing database value.

SMM02040C6801FB300 Quick Information

Product Type: Thin Film Mini-MELF Resistor

Series: SMM0204

Canonical Name: Vishay Dale SMM0204 Thin Film Mini-MELF Resistor, 6.8 kΩ, ±1%

Subcategory: Chip Resistor - Surface Mount

SMM02040C6801FB300 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SMM02040C6801FB300 Estimated Pricing

Qty	Low	High
1+	$0.02	$0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMM02040C6801FB300 Features

Advanced metal film technology resistor.
AEC-Q200 qualified for automotive use.
Intrinsic sulfur resistance feature.
Best in class pulse load capability.
Mini-MELF 0204 package.

SMM02040C6801FB300 Applications

Suitable for automotive applications.
Used in telecommunication circuits.
Ideal for industrial equipment.
Applicable in medical devices.

SMM02040C6801FB300 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the resistance value of the SMM02040C6801FB300 resistor?

The resistance value is 6.8 kΩ.

What is the tolerance of the SMM02040C6801FB300 resistor?

The tolerance is ±1%.

What is the power rating of this resistor?

The power rating is 0.25W, or 1/4W.

What is the temperature coefficient of the SMM02040C6801FB300?

The temperature coefficient is ±50ppm/°C.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 125°C.

What package type is the SMM02040C6801FB300 resistor?

It is a Mini MELF resistor in a MELF, 0204 case.

Is this resistor AEC-Q200 qualified?

Yes, this resistor is AEC-Q200 qualified.

Category	Chip Resistor - Surface Mount
Manufacturer Name	Vishay
Composition	Thin Film
Failure Rate	≤ 0.05 x 10^-9/h
Features	Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding
Lead Style	Through Hole
Number of Terminations	2
Operating Temperature	-55°C to 155°C
Operating Voltage	200 V
Power (Watts)	0.25W, 1/4W
Power Rating	0.4 W
Ratings	AEC-Q200
Resistance	6.8 kΩ
Supplier Device Package	Mini MELF
Tape & Reel	No
Temperature Coefficient	±15 ppm/K; ±25 ppm/K; ±50 ppm/K; ±100 ppm/K
Tolerance	± 0.1 %; ± 0.25 %; ± 0.5 %; ± 1 %
