| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,955 pcs
|
1955 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,955 pcs
|
1955 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

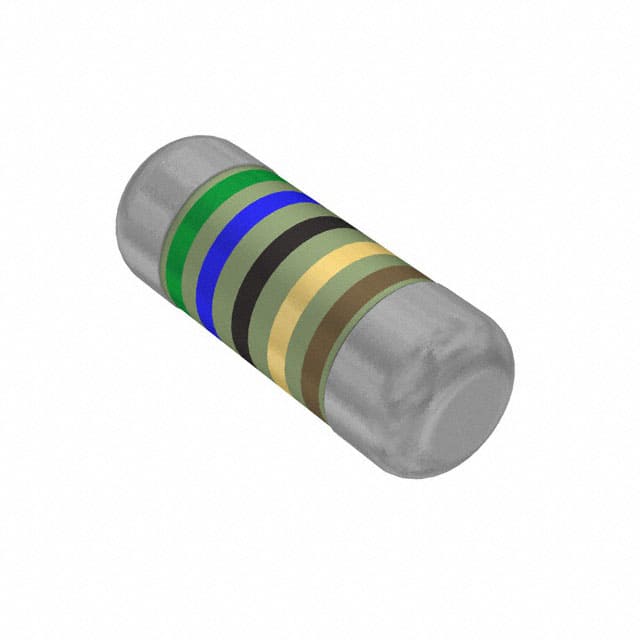

The Vishay Dale SMM02040C5609FB300 is a thin film resistor designed for reliability and stability in modern electronics. It features advanced metal film technology and is AEC-Q200 qualified, making it suitable for demanding applications.
Key electrical specifications include a resistance value of 56 Ohms with a tight tolerance of ±1%. The resistor has a power rating of 1/4W and a temperature coefficient of ±50ppm/°C. It operates across a wide temperature range from -55°C to 155°C, with a maximum permissible film temperature of 155°C.
This component is housed in a Mini MELF package, specifically the MELF, 0204 size, with dimensions of 0.055" Dia x 0.142" L (1.40mm x 3.60mm). It has two terminations and is constructed using thin film technology. The resistor also offers intrinsic sulfur resistance and pulse withstanding capabilities.
Typical applications for this type of resistor include automotive, telecommunication, industrial, and medical equipment where high reliability and stability are critical. The advanced metal film technology ensures excellent stability under various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 56 Ohms.
The tolerance is ±1%.
The power rating is 0.25W or 1/4W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to 125°C.
It is a MELF, 0204 package, specifically a Mini MELF.
Yes, the resistor is AEC-Q200 qualified.
