| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

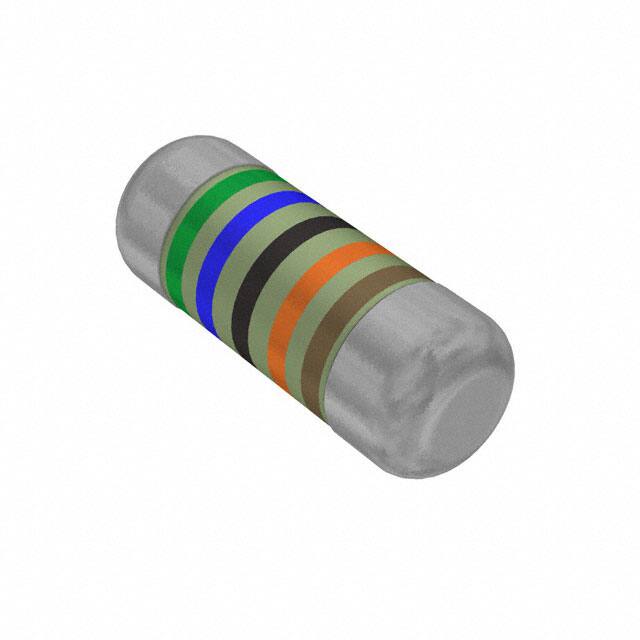

This Vishay Dale SMM02040C5603FB300 is a thin film Mini-MELF resistor designed for reliability and stability in modern electronics. It features a resistance value of 560 kΩ with a tight tolerance of ±1% and a power rating of 0.25W.
The resistor operates within a temperature range of -55°C to 155°C, with a permissible film temperature of 155°C. Its compact MELF, 0204 package measures 0.055" Dia x 0.142" L (1.40mm x 3.60mm). The component has 2 terminations and is constructed using advanced metal film technology.
Key features include its AEC-Q200 qualification, intrinsic sulfur resistance, and pulse withstanding capability, making it suitable for demanding applications. The operating voltage is rated at 200V AC RMS/DC, and it has a failure rate of less than or equal to 0.05 x 10^-9/h.
Applications for this resistor include automotive, telecommunication, industrial, and medical equipment where high reliability and stability are critical. The thin film technology ensures excellent stability across various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 560 kΩ.
The tolerance is ±1%.
The power rating is 0.25W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±50ppm/°C.
It uses a MELF, 0204 package, specifically a Mini MELF.
Yes, the resistor is AEC-Q200 qualified.
